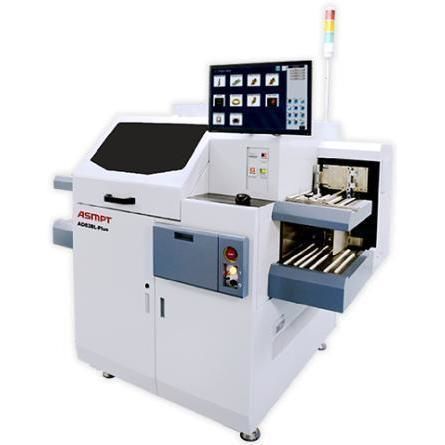

Die-attach die bonder AD838L-Plus
automatedfor the semiconductor industryfor wafers

Die-attach die bonder - AD838L-Plus - ASM Assembly Systems - automated / for the semiconductor industry / for wafers
Die-attach die bonder - AD838L-Plus - ASM Assembly Systems - automated / for the semiconductor industry / for wafers
Add to favorites
Compare this product

Characteristics

Technology
for die-attach
Operational mode
automated
Applications
for the semiconductor industry, for wafers
Other characteristics
high-accuracy, large-area
Placement accuracy

15 µm

Description

Overview
Automatic die bonder designed for large-substrate handling and high throughput.

Features
  • AD838L Series exclusive material handling capability with dragging-free indexing
  • Advanced bond head design with patented technology to support high UPH
  • Supports extra-large substrates up to 300 mm x 100 mm
  • High precision bonding (option)
    • Achieves ±15 µm @ 3σ XY placement accuracy*
    • Patented technology without UPH trade-off
  • Factory automation ready
    • Automatic material handling system
    • Automatic wafer loader (option)

Notes
*All performance is package and material dependent

Technical specifications
  • Model: AD838L-Plus
  • Product type: Automatic Die Bonder
  • Series: AD838L Series
  • Material handling: Dragging-free indexing
  • Maximum substrate size supported: up to 300 mm x 100 mm
  • High precision placement (option): ±15 µm @ 3σ XY placement accuracy*
  • Bond head: Advanced bond head design; patented technology
  • Automation options: Automatic material handling system; Automatic wafer loader (option)
  • Performance note: All performance is package and material dependent
