Robotic tool changer QC-1
automatichigh-speed

robotic tool changer
robotic tool changer
robotic tool changer
Add to favorites
Compare this product


Characteristics

Applications
robotic
Type
automatic
Other characteristics
high-speed

Description

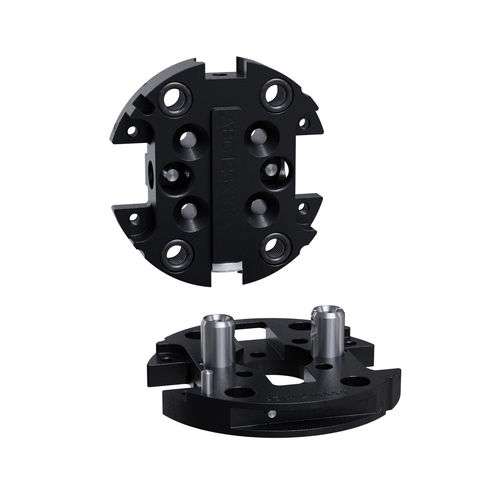

-Modular construction: Electrical capabilities are built into separate modules increasing flexibility for the customer. -Extremely compact and lightweight design for high-speed "spider" or delta robots. -Body diameter 1.77 in (45 mm). -Weighs 3.3 ounces (93.8 grams) with fittings and E04 modules. -(4) M5 pass-through air connections. -Stack height of only 0.67 in (16.9 mm). -Locking parts are made of Rc58 stainless steel. -No-Touch Locking technology allows for max locking distance separation of 0.04 in (1.0 mm) between Master and Tool plates. -Patented Fail-Safe locking mechanism design results in low force acting on the piston. Suggested Payload Limit: 3 lb Locking Force @ 80 psi (5.5 bar): 39 lb Static Moment Capacity (X & Y): 8.7 lbf-in Static Moment Capacity (Z): 10.2 lbf-in Positional Repeatability - (X, Y, & Z): 0.0004 in Weight - when coupled: 0.207 lb Master Weight: 0.124 lb Tool Weight: 0.0829 lb Maximum distance between Master & Tool plate before locking at 87 psi (6 bar): - 0.04 in Pneumatic Pass-through Ports (qty) Size: (4) M5 or #10-32
