Product overview

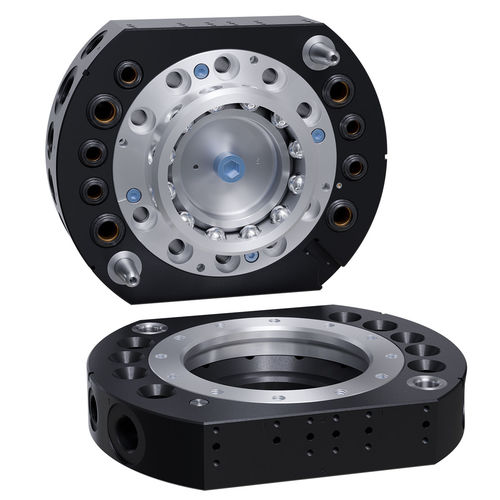

ATI Robotic Tool Changers QC-160-E provide automated end-effector exchange with secure fail-safe locking, integrated utility passthroughs and high positional repeatability. Designed for high-cycle industrial automation, the unit reduces downtime and increases flexibility on robotic workcells.

Key features

• (5) 3/8 G (BSPP) and (4) 1/2 G (BSPP) integrated pneumatic passthrough ports in a 9.3 kg coupled package
• No-Touch locking technology allows up to 3.0 mm plate separation during locking
• Patented fail-safe locking mechanism yields low piston force and reliable engagement
• Direct mounting to 125 mm ISO wrist to minimize stack height; supports additional mounting patterns
• All locking components manufactured from Rc58 stainless steel for wear resistance
• Two flats on body to mount up to four utility modules without adapters for expanded functionality
• Alignment features in the body for increased torsional strength and improved serviceability
• Integrated lock/unlock sensing for status communication (no separate SIP required)

Specifications (table)
Locking Force @ 80 psi (5.5 bar): 31,000 N (≈ 7,000 lbf)
Maximum Locking Distance: 2 mm (≈ 0.0787 in)
Passthrough Port Sizes: (5) 3/8 NPT; (4) 1/2 NPT (BSPP/G thread variants available)
Pneumatic Passthrough Port Quantity: 5
Positional Repeatability: 0.0152 mm (≈ 0.0006 in)
Suggested Payload Limit: 300 kg (≈ 660 lb)
X/Y Static Moment Capacity: 2,710 Nm
Z Static Moment Capacity: 2,260 Nm
Master Side Weight: 6.44 kg
Tool Side Weight: 2.86 kg
Weight When Coupled: 9.3 kg
Actuation Type: Pneumatic
Robot Wrist Type: Standard (125 mm ISO mounting)
Color: Black
Port Threads: BSPP/G or NPT options

Technical characteristics / specifications

• Model number (SKU shown on page): QC-160-E
• Locking force (at 80 psi / 5.5 bar): 31,000 N (≈ 7,000 lbf)
• Maximum locking distance: 2 mm
• Pneumatic passthrough ports: 5 total; sizes: (5) 3/8 NPT and (4) 1/2 NPT (BSPP/G thread option)
• Positional repeatability: 0.0152 mm
• Suggested payload limit: 300 kg
• X/Y static moment capacity: 2,710 Nm; Z static moment capacity: 2,260 Nm
• Weights: Master 6.44 kg; Tool 2.86 kg; Coupled 9.3 kg
• Actuation: Pneumatic
• Mounting: Direct to 125 mm ISO wrist (supports additional mounting patterns)
• Material: Locking parts Rc58 stainless steel
• Finish / Color: Black
