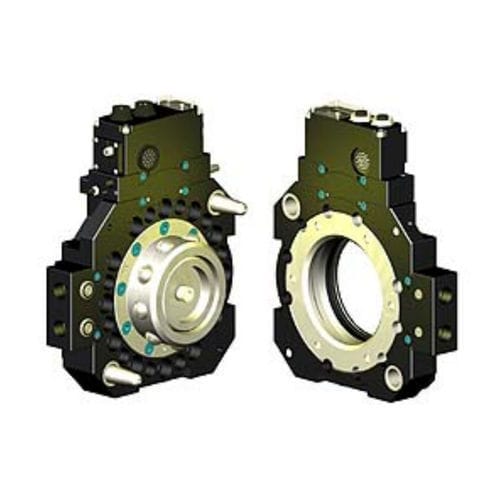

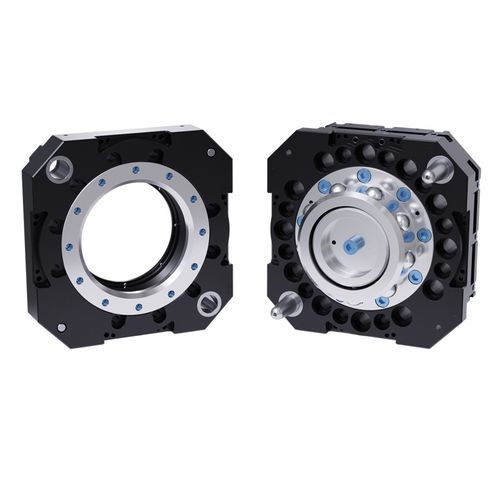

Robotic tool changer QC-310

automaticpneumaticpneumatically-actuated

Overview
QC-310 tool changers provide fully automated end-effector exchange with secure mechanical locking, utility pass-through and high positional repeatability. Designed for harsh industrial environments and high-cycle applications, they improve uptime and operational flexibility in robotic automation systems.

Key Features

• Modular construction: Power, coolant, servo, communication and discrete-signal interfaces are provided as separate modules to simplify maintenance and increase configuration flexibility.
• Ready sensors (2): Detect the tool plate within 1.5 mm of the master plate and signal ready-to-lock.
• Fail-safe patented locking: Locking mechanism engineered to apply low force to the piston while ensuring secure engagement.
• High moment capacity: Large piston diameter and outward ball travel increase rotational moment capacity.
• Durable locking components: All locking parts manufactured from Rc58 stainless steel.
• Integrated lock/unlock sensing: Provides position feedback for safety and process control.
• Direct robot mounting: Mounts directly to most 500 kg class robot wrists (no SIP required).

Additional Notes
Modular architecture supports a wide range of utility and signal requirements while simplifying service and spare-part commonality. Suitable for applications that require frequent tool changes, fluid/electrical passthroughs and high repeatability.

Caractéristiques / Spécifications techniques

• Locking Force @ 80 psi (5.5 bar): 38000 N
• Maximum Locking Distance: 2.54 mm
• Positional Repeatability: 0.0152 mm
• Suggested Payload Limit: 510 kg
• X/Y Static Moment Capacity: 3290 Nm
• Z Static Moment Capacity: 3160 Nm
• Master Side Weight: 12.5 kg
• Tool Side Weight: 6.92 kg
• Weight When Coupled: 19.5 kg
• Actuation Type: Pneumatic
• Robot Wrist Type: Standard
• Color: Black
