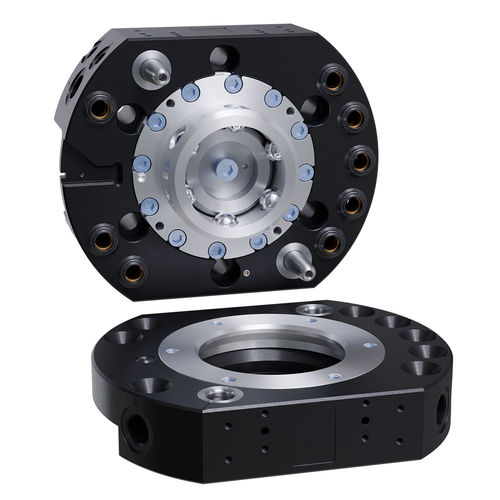

Robotic tool changer QC-110-E

pneumaticautomaticpneumatically-actuated

Description
Compact pneumatic tool changer designed for automated end-effector exchange on industrial robots. The QC-110-E provides secure fail-safe locking, integrated pneumatic passthroughs and high positional repeatability for demanding, high-cycle applications. It mounts directly to a standard 125 mm ISO robot wrist to minimize stack height and simplify integration.

Key features

• (8) integrated pneumatic passthrough ports; port thread options: 3/8 NPT or BSPP/G.
• No‑Touch locking technology permits up to 3.05 mm (0.12 in) plate separation during locking.
• Patented fail‑safe locking mechanism with low piston force and high reliability.
• Direct mounting to 125 mm ISO wrist pattern; supports additional mounting interfaces via adapter plates.
• Locking components manufactured from Rc58 stainless steel.
• Two flats for mounting utility or electrical modules.
• Alignment features for improved torsional strength and serviceability.
• Integrated lock/unlock sensing for status communication; no SIP required.

Specifications
Locking force @ 80 psi (5.5 bar): 12000 N (≈2700 lbf)
Maximum locking distance: 3.05 mm (≈0.12 in)
Passthrough ports: 8 (3/8 NPT or BSPP/G options)
Pneumatic passthrough quantity: 8
Positional repeatability: 0.0152 mm (≈0.0006 in)
Suggested payload limit: 180 kg (≈397 lb)
X/Y static moment capacity: 784 Nm (≈6940 lbf·in)
Z static moment capacity: 784 Nm (≈6940 lbf·in)
Master side weight: 3.63 kg (≈8.0 lb)
Tool side weight: 2.27 kg (≈5.0 lb)
Weight when coupled: 5.9 kg (≈13.0 lb)
Actuation type: Pneumatic
Robot wrist type: Standard (direct mount to 125 mm ISO)
Color: Black
Port thread options: BSPP/G or NPT

Notes
Available in port-thread variations (BSPP/G and NPT). Designed for direct mounting to the standard 125 mm ISO wrist pattern; adapter plates available for alternate bolt circles. Integrated sensing reduces stack height and simplifies system wiring.
