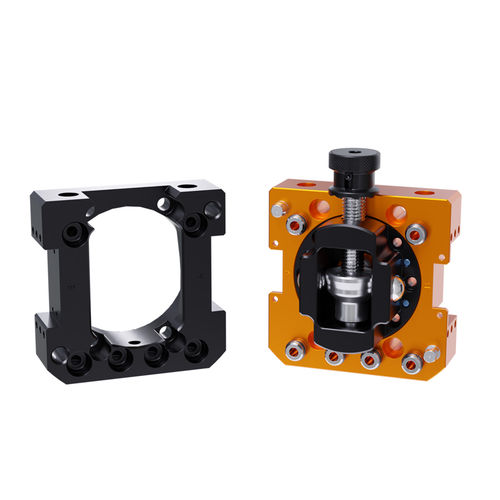

Robotic tool changer MC-36R

manualpneumaticmanually-operated

Product Overview
ATI Manual Tool Changers provide a simple, reliable solution for quickly switching end-effectors without tools or power. Designed for ease of use and repeatable alignment, they reduce downtime and improve flexibility in collaborative, lab, or low-volume applications.

Key Features

• (6) 1/8 NPT integrated air passthru ports in a compact 1.75 kg (≈3.85 lb) package
• Screw-style locking mechanism (patented) providing high locking force
• Ratchet knob for added security in locked position
• Two flats available for mounting electrical modules
• Suggested payload limit: 36 kg (≈80 lb); rated payload noted on product content: 16 kg (≈35 lb)
• High strength-to-weight ratio

Specifications

• Passthrough port sizes: (6) 1/8 NPT
• Pneumatic passthrough port quantity: 6
• Positional repeatability: not specified
• Suggested payload limit: 36 kg (≈80 lb)
• Rated payload: 16 kg (≈35 lb)
• X/Y static moment capacity: 113 Nm (≈1000 lbf·in)
• Z static moment capacity: 169 Nm (≈1500 lbf·in)
• Master side weight: 0.998 kg (≈2.2 lb)
• Tool side weight: 0.748 kg (≈1.65 lb)
• Weight when coupled: 1.75 kg (≈3.85 lb)
• Actuation type: Manual
• Robot wrist type: Standard
• Color: Black
• Port threads: NPT threads

Model Information
Model number: MC-36R

Technical specifications

• Locking: Screw-style locking mechanism (patented) with ratchet knob
• Mounting: Two flats for mounting electrical modules
