Robotic tool changer QC-46-E

pneumaticpneumatically-actuated

Overview

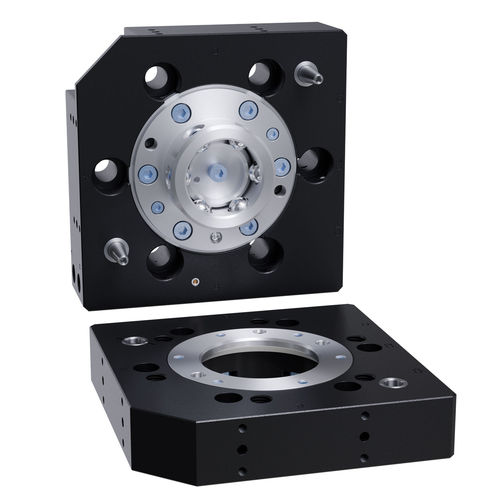

The QC-46-E robotic tool changer enables fully automated end-effector exchange with secure locking, utility passthrough and high positional repeatability. Designed for high-cycle industrial environments, it reduces downtime and increases process flexibility for robotic cells.

Key features

• Four (4) flats for mounting utility modules; Flat C supports center/dual module mounting (up to two modules without adapter).
• No-Touch locking technology permits up to 2.5 mm plate separation during locking.
• Patented fail-safe locking mechanism minimizes force on the piston for reliable engagement.
• Direct mounting to ISO 100 mm robot wrist pattern to minimize stack height; supports additional mounting patterns.
• All locking components manufactured from Rc58 stainless steel for wear resistance.
• Alignment features in the tool changer body improve torsional strength and serviceability.
• Integrated lock/unlock sensing provides clear status communication; no SIP required.

Variations / Options

• Port thread options: BSPP/G or NPT threads.
• Product variation SKUs/IDs listed on the product page for each thread option.

Technical specifications

• Locking force @ 80 psi (5.5 bar): 5800 N
• Maximum locking distance: 2.54 mm
• Passthrough port sizes: Not specified on page
• Pneumatic passthrough port quantity: Not specified on page
• Positional repeatability: 0.0152 mm
• Suggested payload limit: 70 kg
• X/Y static moment capacity: 226 Nm
• Z static moment capacity: 150 Nm
• Master side weight: 1.95 kg
• Tool side weight: 1.03 kg
• Weight when coupled: 2.98 kg
• Actuation type: Pneumatic
• Robot wrist type: Standard (ISO 100 mm)
• Color: Black
• Port threads (default): BSPP/G
• Model number / SKU: QC-46-E
