Robotic tool changer QC-1310

pneumaticautomaticpneumatically-operated

Product Overview

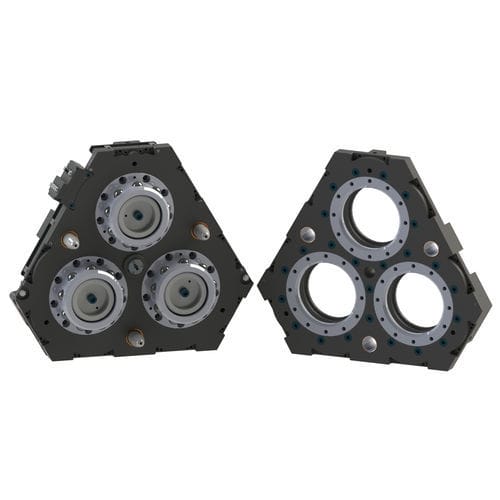

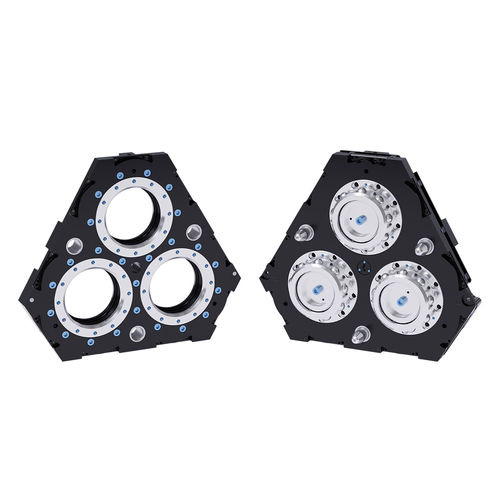

QC-1310 robot tool changers provide fully automated end-effector exchange with a secure locking mechanism, utility pass-through and high positional repeatability. Designed for industrial robotic cells and high-cycle applications, the QC-1310 supports modular utility modules and internally routed cabling to simplify integration and maintenance.

Key Features

• Modular construction: Separate modules for power, coolant, servo, communication and discrete signals to increase flexibility and simplify maintenance.
• High moment capacity and strength: Uses the proven QC locking mechanism delivering capacities beyond typical robot wrist specifications.
• Internally routed cabling: Supports integrated valve and control modules for streamlined module add/remove.
• Stack height when locked: 5.20 in (132.2 mm) (does not include required interface plate).
• Integrated sensing: Lock and unlock sensors available for automated verification.

Specifications

• Model Number: QC-1310
• Locking Force @ 80 psi (5.5 bar): 110000 N
• Maximum Locking Distance: 1.65 mm
• Positional Repeatability: 0.0152 mm
• Suggested Payload Limit: 2990 kg
• X/Y Static Moment Capacity: 11000 Nm
• Z Static Moment Capacity: 12600 Nm
• Master Side Weight: 43.1 kg
• Tool Side Weight: 21.3 kg
• Weight When Coupled: 64.4 kg
• Actuation Type: Pneumatic
• Robot Wrist Type: Standard
• Color: Black
• Notes: Stack height value does not include required interface plate; modular design and internal cabling support integrated valve/control options.
