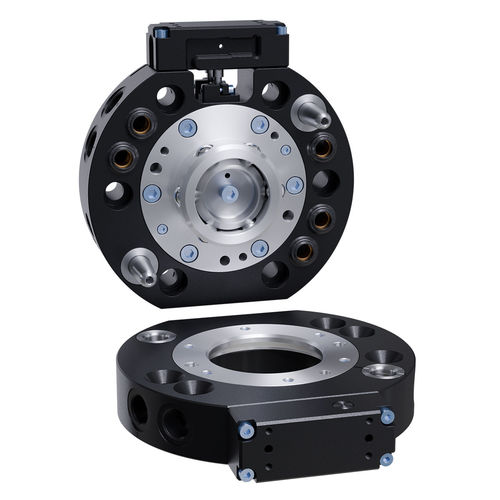

Robotic tool changer QC-76

pneumaticautomaticpneumatically-actuated

Product overview
QC-76 robotic tool changers provide fully automated end-effector exchange with a positive locking mechanism, utility pass-through for fluids and signals, and high positional repeatability. Designed for high-cycle operation and harsh industrial environments, they optimize uptime and flexibility in robotic automation cells.

Features

• Fully automated end-effector exchange
• Secure positive locking mechanism
• Utility pass-through for pneumatic, fluid and signal connections
• High positional repeatability
• Engineered for high-cycle and harsh environments
• Improves uptime, flexibility and productivity in robotic automation

Port Threads (Variations)
NPT threads
BSPP/G threads
Rc (BSPT) noted for some configurations

Available SKUs / Variants

• QC-76 — SKU: QC-76 — variation_id: 15163 — Port Threads: NPT
• QC-76-E — SKU: QC-76-E — variation_id: 15164 — Port Threads: BSPP/G

Technical specifications

• Category: Tool Changers
• Commercial name (model): QC-76
• Internal model number: tool-changers-qc-76
• Part number: N/A
• Port thread options: NPT; BSPP/G; Rc (BSPT) for some configurations
• Variation IDs: 15163 (QC-76), 15164 (QC-76-E)
• Main product image filename: QC-76-E.jpg
• Suggested payload limit: 220 lb
• Locking force @ 80 psi (5.5 bar): 2600 lb
• Static moment capacity (X & Y): 4800 lbf-in
• Static moment capacity (Z): 6200 lbf-in
• Positional repeatability (X, Y & Z): 0.0006 in
• Weight when coupled: 8.1 lb
• Master side weight: 4.95 lb
• Tool side weight: 3.15 lb
• Maximum gap between Master and Tool plates before locking: 0.08 in
• Through pneumatic port sizing (quantity): (5) 3/8 NPT; Rc 3/8 (BSPT)
