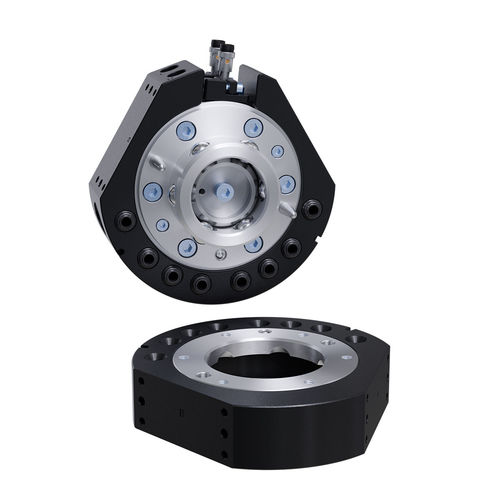

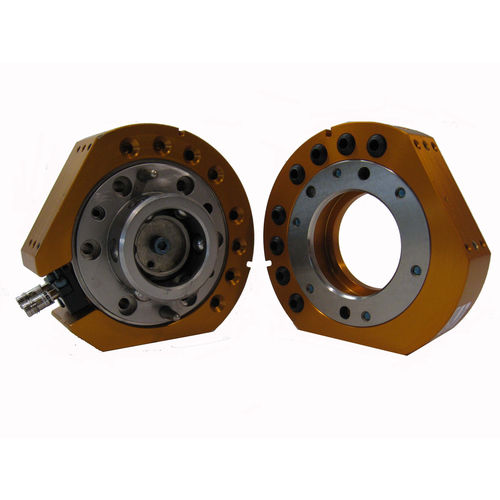

Robotic tool changer QC-40Q-E

pneumaticautomaticpneumatically-actuated

Product overview
The QC-40Q-E is a pneumatic robotic tool changer designed for fully automated end-effector exchange in industrial environments. It provides secure fail-safe locking, integrated utility passthroughs and high positional repeatability to increase uptime and flexibility in high-cycle robotic operations.

Key Features

• Eight integrated 1/8 pneumatic passthrough ports in a compact coupled weight of 1.84 kg
• No-Touch locking technology permits up to 1.5 mm plate separation during locking
• Patented fail-safe locking mechanism limits force on the piston for reliable engagement
• Supports multiple mounting patterns via interface plates for flexible integration
• All locking components machined from Rc58 stainless steel for wear resistance
• Two flats provided to mount utility modules and expand functionality
• Alignment features in the tool changer body improve torsional strength and serviceability

Additional Product Details

• Actuation: Pneumatic
• Designed for standard robot wrists
• Color: Black
• Master/tool side interface options and modular utility mounting available

Specifications

• Model number: QC-40Q-E
• Locking force @ 80 psi (5.5 bar): 5600 N
• Maximum locking distance: 3.05 mm
• No-Touch locking separation: up to 1.5 mm
• Passthrough port sizes: (8) 1/8 (NPT or BSPP/G depending on configuration)
• Pneumatic passthrough port quantity: 8
• Positional repeatability: 0.0152 mm
• Suggested payload limit: 60 kg (≈132 lb)
• Static moment capacity X/Y/Z: 226 Nm
• Master side weight: 1.25 kg
• Tool side weight: 0.59 kg
• Coupled weight: 1.84 kg
• Actuation type: Pneumatic
• Robot wrist type: Standard
• Port thread options: NPT or BSPP/G
