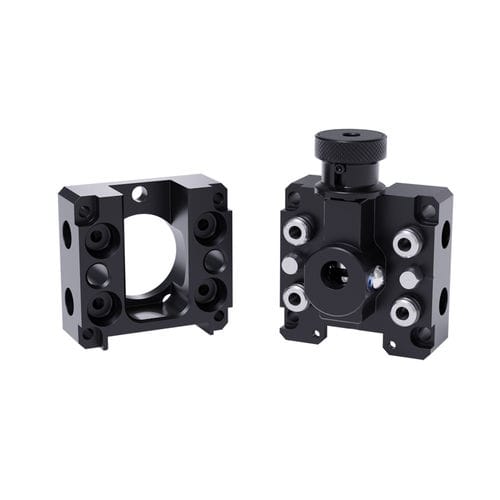

Collaborative robot tool changer MC-16R

manualmanually-operated

Product description
The MC-16R manual tool changer provides a simple, reliable solution for quick end-effector changes without tools or external power. Designed for ease of use and repeatable alignment, it reduces downtime and increases flexibility in collaborative, laboratory and low-volume production environments.

Key features

• (4) 1/8 NPT integrated air passthrough ports in a compact 0.794 kg package
• Screw-style locking mechanism (patented) for high locking force
• Ratchet knob for added security in the locked position
• One flat available to mount electrical modules for increased functionality
• Rated to 16 kg (35 lb) payload

Product Features

• (4) 1/8 NPT integrated air passthrough ports
• Patented screw-style locking mechanism
• Single-hand manual lock and unlock operation
• Ratchet knob secures locked position
• Flat for mounting electrical modules
• High strength-to-weight ratio

Technical specifications

• Passthrough Port Sizes — (4) 1/8 NPT
• Pneumatic Passthrough Port Quantity — 4
• Positional Repeatability — 0.0254 mm (0.001 in)
• Suggested Payload Limit — 16 kg (35 lb)
• X/Y Static Moment Capacity — 24.9 Nm (220 lbf-in)
• Z Static Moment Capacity — 45.2 Nm (400 lbf-in)
• Master Side Weight — 0.522 kg
• Tool Side Weight — 0.272 kg
• Weight When Coupled — 0.794 kg
• Actuation Type — Manual
• Robot Wrist Type — Standard
• Color — Black
• Port Threads — NPT Threads
