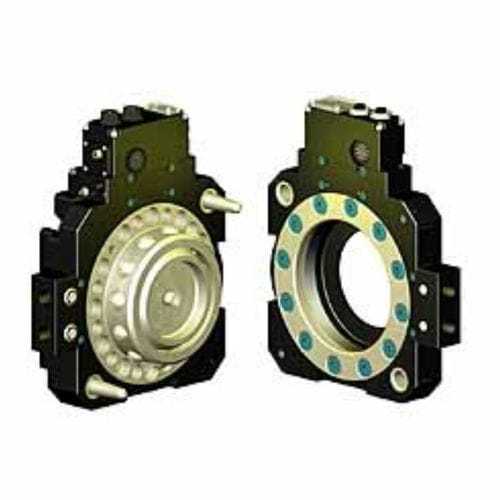

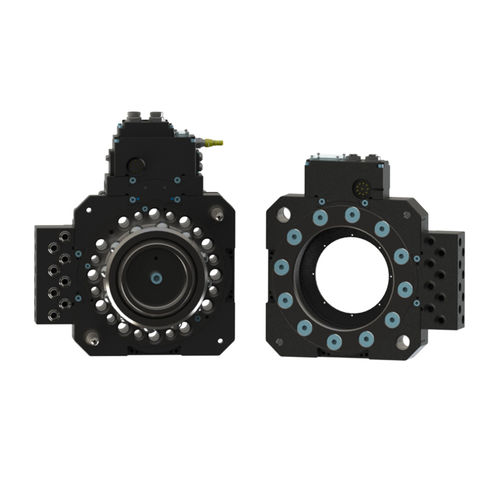

Robotic tool changer QC-510

pneumaticautomaticpneumatically-actuated

Product Overview
The QC-510 tool changer enables fully automated end-effector exchange with secure pneumatic locking, integrated utility pass-through and high positional repeatability. Built for high-cycle industrial robot applications and harsh environments, it supports direct mounting to most 1000 kg robot wrists (no SIP required).

Key Features

• Modular construction: Separate modules for high power, coolant, servo, communication and discrete signals simplify maintenance and increase configurability.
• Ready sensors (2): Detect when the tool plate is within 0.06 in (1.5 mm) of the master plate to signal ready-to-lock.
• Patented fail-safe locking: Design reduces force on the piston while ensuring secure engagement.
• High moment capacity: Large piston diameter and outward ball travel increase X/Y/Z moment resistance.
• Materials: All locking components are made from Rc58 stainless steel.
• Integrated sensing: Lock/unlock sensors are included for safety and process verification.
• Direct mount: Attaches to most 1000 kg robot wrists without special interface plate.

Specifications

• Locking Force @ 80 psi (5.5 bar): 62000 N (≈ 13 957 lbf)
• Maximum Locking Distance: 2.54 mm (0.1 in)
• Positional Repeatability: 0.0152 mm (0.0006 in)
• Suggested Payload Limit: 700 kg (≈ 1 543 lb)
• X/Y Static Moment Capacity: 4860 Nm (≈ 43 000 lbf·in)
• Z Static Moment Capacity: 3500 Nm (≈ 31 000 lbf·in)
• Master Side Weight: 19.4 kg (≈ 42.8 lb)
• Tool Side Weight: 8.64 kg (≈ 19 lb)
• Weight When Coupled: 28.1 kg (≈ 61.8 lb)
• Actuation Type: Pneumatic
• Robot Wrist Type: Standard
• Color: Black
