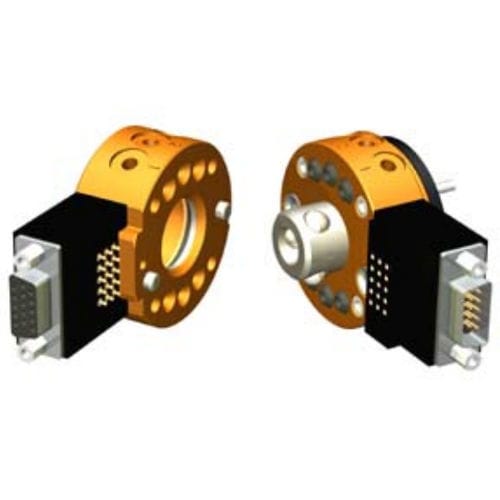

Robotic tool changer QC-11

automatic

-Lightweight and small size with a high-strength locking mechanism. -No-Touch locking technology allows up to 0.06 inch (1.5 mm) plate separation when locking. -Patented Fail-Safe locking mechanism design results in low force acting on the piston. -Large piston diameter and outward ball travel increase moment capacity. -All locking parts are made of Rc58 stainless steel. -Long-life bushings for pneumatic pass-through. Suggested Payload Limit: - 35 lb Locking Force @ 80 psi (5.5 bar): - 240 lb Static Moment Capacity (X & Y): - 180 lbf-in Static Moment Capacity (Z): - 110 lbf-in Positional Repeatability - (X, Y, & Z): - 0.0004 in Weight - when coupled: - 0.54 lb Master Weight: - 0.36 lb Tool Weight: - 0.18 lb Maximum distance between Master & Tool plate before locking at 87 psi (6 bar): - 0.06 in Pneumatic Pass-through Ports (qty) Size: - (6) M5 or #10-32
