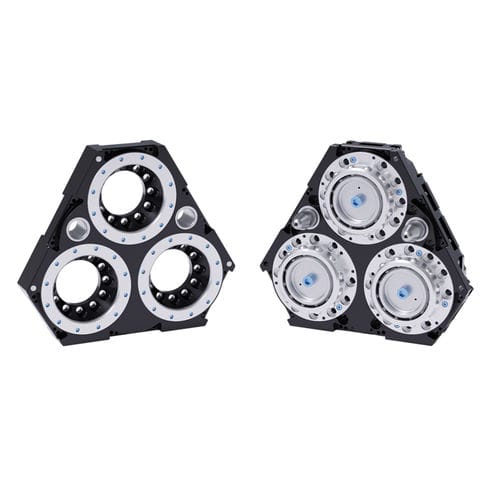

Robotic tool changer QC-1210

pneumaticpneumatically-actuatedhigh-speed

Product overview
The QC-1210 is a robotic pneumatic tool changer designed for fully automated end-effector exchange on industrial robots. It provides secure locking, utility pass-through and high positional repeatability for high-cycle applications and harsh environments, with integrated adapter plates for common mounting patterns.

Key Features

• Modular construction: Separate modules for power, coolant, servo, communication and discrete signals simplify maintenance and increase configurability.
• High moment capacity and strength: Uses the proven locking mechanism from the QC-210 series and meets robot load specifications up to 1350 kg.
• Internally routed cabling: Supports integrated valve and DeviceNet modules for easy installation and removal.
• Easy dress: Electrical, pneumatic and water ports are placed in-line; modules can be rearranged to suit cable routing.
• Weight and size optimized: Compact design minimizes weight and envelope without compromising performance.
• Integrated robot adapter plates: Available for 200–315 mm mounting patterns.
• Stack height when locked: 122.2 mm (4.81 in) — excludes required interface plate.

Technical specifications

• Suggested payload limit: 1350 kg (≈ 2980 lb)
• Locking force @ 80 psi (5.5 bar): 93,000 N (≈ 21,000 lbf)
• Maximum locking distance: 1.02 mm (0.04 in)
• Positional repeatability: 0.0152 mm (0.0006 in)
• X/Y static moment capacity: 5,420 Nm (≈ 48,000 lbf·in)
• Z static moment capacity: 5,420 Nm (≈ 48,000 lbf·in)
• Master side weight: 17.7 kg (≈ 39.0 lb)
• Tool side weight: 10.0 kg (≈ 22.0 lb)
• Weight when coupled: 27.8 kg (≈ 61.3 lb)
• Actuation type: Pneumatic
• Robot wrist type: Standard
• Color: Black
