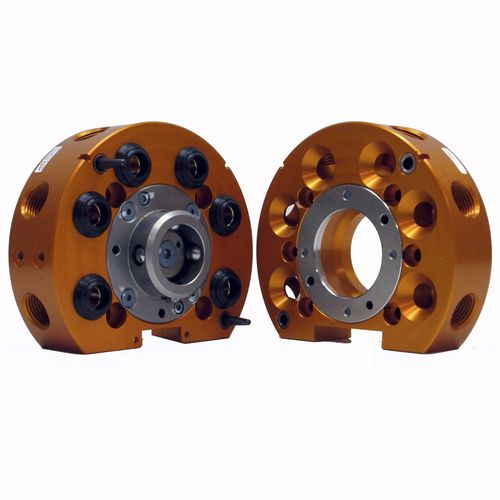

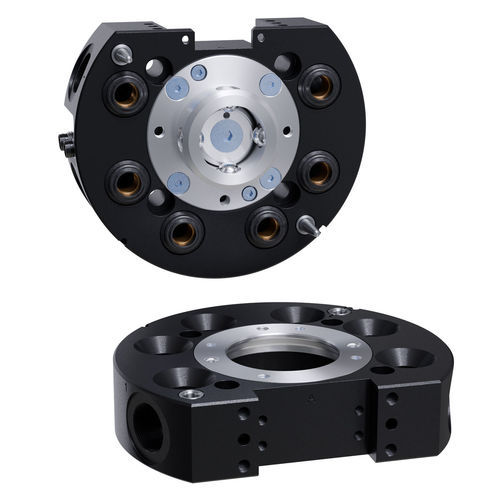

Robotic tool changer QC-22-E

automaticpneumaticpneumatically-actuated

Product Overview
ATI QC-22-E robotic tool changer enables fully automated exchange of end-effectors with secure fail-safe locking, integrated utility passthroughs and high repeatability. Designed for high-cycle industrial applications and harsh environments, it improves uptime and flexibility in robotic automation.

Key Features

• (6) 3/8 NPT integrated pneumatic passthrough ports in a 1.42 kg coupled package
• Larger pneumatic ports for higher airflow applications
• No-Touch locking technology permits up to 2.0 mm plate separation at locking
• Patented fail-safe locking design reduces force on the piston
• Compatibility with multiple mounting patterns via interface plates
• All locking components made from Rc58 stainless steel
• One flat on the body for mounting utility modules
• Alignment features increase torsional strength and serviceability
• Optional lock/unlock sensors available

Specifications

• Locking force @ 80 psi (5.5 bar): 2300 N (≈ 520 lbf)
• Maximum locking distance: 2.03 mm (0.08 in)
• Passthrough port sizes: (6) 3/8 NPT
• Pneumatic passthrough quantity: 6
• Positional repeatability: 0.0152 mm (0.0006 in)
• Suggested payload limit: 25 kg (≈ 55 lb)
• X/Y static moment capacity: 56.5 Nm (≈ 500 lbf-in)
• Z static moment capacity: 90.4 Nm (≈ 800 lbf-in)
• Master side weight: 0.866 kg (≈ 1.91 lb)
• Tool side weight: 0.549 kg (≈ 1.21 lb)
• Weight when coupled: 1.42 kg (≈ 3.13 lb)
• Actuation type: Pneumatic
• Robot wrist type: Standard
• Color: Black
• Port threads: BSPP / G threads
