Robotic tool changer QC-50

automaticpneumaticpneumatically-actuated

Product Overview

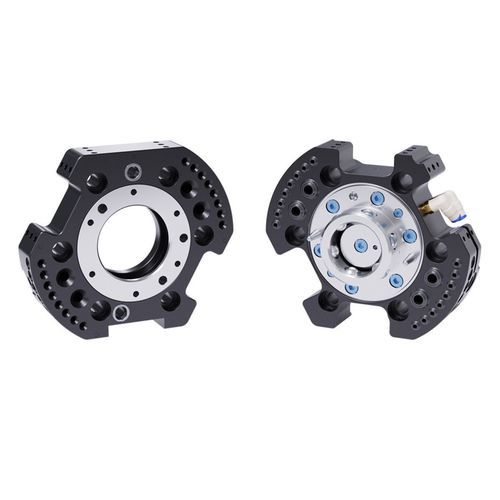

QC-50 pneumatic tool changer provides fully automated end-effector exchange with secure fail-safe locking, integrated pneumatic passthroughs and high positional repeatability. Designed for high-cycle industrial robotics and harsh environments, it minimizes robot stack height with direct mounting to a 100 mm ISO wrist and supports modular utility attachments.

Key Features

• Compact pneumatic design with (16) M5 and (4) 1/8 BSPP passthrough ports (20 total)
• No-Touch locking technology allows up to 3.0 mm plate separation during locking
• Patented fail-safe locking mechanism results in low force on the piston
• Direct mounting to 100 mm ISO wrist to minimize stack height; supports additional mounting patterns
• Locking components manufactured from Rc58 stainless steel
• Four flats for mounting utility modules (signal, fluid/air, electrical)
• Alignment features in the body for increased torsional strength and serviceability
• Integrated Lock/Unlock sensing for status communication; no SIP required

Technical Specifications

• Locking Force @ 80 psi (5.5 bar): 5800 N
• Maximum Locking Distance: 2.54 mm
• Passthrough Port Sizes: (16) M5 and (4) 1/8 BSPP
• Pneumatic Passthrough Port Quantity: 20
• Positional Repeatability: 0.0152 mm
• Suggested Payload Limit: 50 kg
• X/Y Static Moment Capacity: 226 Nm
• Z Static Moment Capacity: 226 Nm
• Master Side Weight: 1.53 kg
• Tool Side Weight: 0.78 kg
• Weight When Coupled: 2.31 kg
• Actuation Type: Pneumatic
• Robot Wrist Type: Standard
• Color: Black
• Port Threads: BSPP/G Threads
