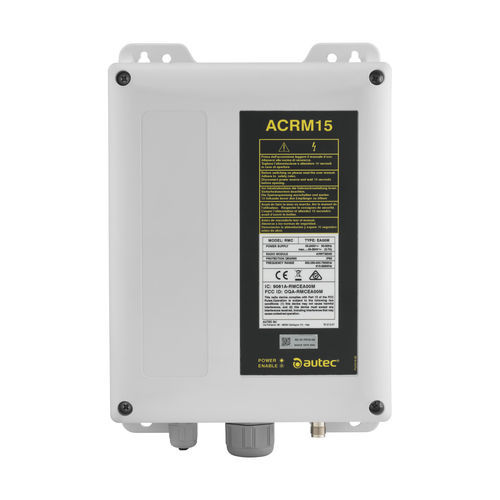

Radio receiver ACRM15

wirelessdata transmissionfieldbus

Overview
The ACRM15 is an AC-powered receiving unit designed for industrial control applications. It includes 14 programmable relays plus START and STOP functions, an internal antenna (external optional) and 4 inputs for data feedback. Two expansion slots accept a range of optional boards for I/O, analog outputs, communication interfaces and synchronization between receivers.

Features

• AC power supply: 45–230 VAC
• 14 programmable relays plus START and STOP
• Internal antenna standard; external antenna optional
• 4 inputs for Data Feedback
• 2 expansion slots for optional boards
• Supported expansion boards: programmable relay boards; voltage/current analog output boards; digital and/or analog input boards; variable resistive output boards; sync (Synchro) boards; serial communication port boards (RS-232/485, CANopen, Profibus DP, PROFINET, EtherCAT®, EtherNet/IP™)

Technical data sheet
Power supply: 45-230 VAC
Antenna: Internal standard; External optional
Max number of outputs: 30 on/off + START and STOP
Commands rated current: 6 A (250 VAC)
Rated current of STOP / Safety outputs: 4 A (250 VAC)
Safety performance of the STOP function (EN ISO 13849-1): up to PL d
Protection degree: IP65 (NEMA 4)
Operating temperature: -20°C to +70°C (-4°F to +158°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Connecting interfaces: Cable gland; 24 or 32-pin plug
Dimensions: 185 x 287 x 105 mm (7.28 x 11.30 x 4.13 in)
Weight: 2.2 kg (4.9 lb)

Technical specifications

• Model: ACRM15
• Power supply: 45-230 VAC
• Programmable relays: 14 (plus START and STOP)
• Maximum outputs (with expansions): 30 on/off + START and STOP
• Data Feedback inputs: 4
• Expansion slots: 2 (for relay/analog/digital/sync/communication boards)
• Supported communication interfaces (via expansion boards): RS-232/485, CANopen, Profibus DP, PROFINET, EtherCAT®, EtherNet/IP™
• Commands rated current: 6 A (250 VAC)
• STOP/safety outputs rated current: 4 A (250 VAC)
• Safety performance (STOP): up to PL d (EN ISO 13849-1)
• Protection degree: IP65 (NEMA 4)
• Operating temperature: -20°C to +70°C (-4°F to +158°F)
• Storage temperature: -40°C to +70°C (-40°F to +158°F)
• Connecting interfaces: Cable gland; 24 or 32-pin plug
• Dimensions: 185 x 287 x 105 mm (7.28 x 11.30 x 4.13 in)
• Weight: 2.2 kg (4.9 lb)
