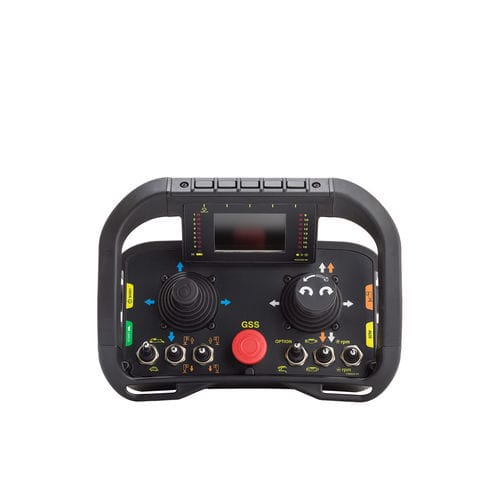

Radio control LINK AJN

with buttonsjoystickwith toggle switch

Overview
LINK AJN is the compact-size model in the AIR series designed for industrial remote control of cranes, overhead travelling cranes and small mobile vehicles. The transmitter supports up to 2 multi-axis joysticks or up to 6 linear joysticks and up to 8 actuators. A 2.8” TFT colour display provides real-time command and machine-status information. The unit is lightweight and ergonomically shaped for operator use and is available with a two-way FHSS radio link in the 870–915 MHz band. LINK AJN is compatible with all AIR receiving units.

Accessories

• Shoulder harness
• Waist belt
• Removable NiMH or Li‑Ion battery and battery charger

Actuators

• Potentiometer
• Rotary switch
• Toggle switch
• Pull-to-operate toggle switch
• Side button

Options

• Vision system — 2.8" TFT LCD display (320×240 pixels, 65,536 colors) with 16 LEDs and five interaction buttons; optional encoder for navigation. Suitable for indoor and outdoor use.
• Signaling device — 32 LED matrix with 32 diagnostic LEDs; adjustable light intensity; NIGHT & DAY mode available.
• Connection device — Cable Control (tether cable) to replace wireless link with a wired connection between cable station and base station.
• Protection system — Marine-grade corrosion-proof components and treatments for salt and humidity resistance.
• IR sensor — limits the operating area of the remote control and operator.
• Zero‑G sensor — activates on impact, throwing, rolling, falls from heights over 1 m, or tilting beyond a preset angle.
• External buzzer — audible signaling for specific situations.

Characteristics / Technical specifications

• Power supply: 7.4 VDC with LPM02 or MBM06MH battery
• Frequency band: 870–915 MHz FHSS
• Typical working range: 100 m (330 ft)
• Average usage time with fully charged battery (continuous use at 20°C / 68°F): with LPM02 battery: 24 h without display; 10 h with 2.8” display — with MBM06MH battery: 12 h without display
• Protection degree: IP65 (NEMA 4)
• Operating and storage temperature: Operating: -20 °C ÷ +55 °C / -4 °F ÷ +131 °F — Storage: -40 °C ÷ +70 °C / -40 °F ÷ +158 °F
• Safety performance of the GSS/EMS/ATS function: up to PL e, SIL 3 (EN ISO 13849-1 / EN IEC 62061)
• Dimensions: 243 x 169 x 175 mm (9.6 x 6.6 x 6.8 in)
• Weight: 1.75 kg (3.85 lb)
