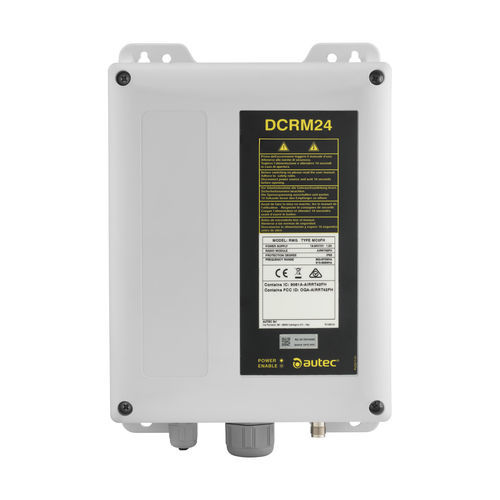

Radio receiver DCRM24

wirelessdigitalfor remote control

Product overview
The DCRM24 is a DC-powered receiving unit designed for industrial remote control applications. It offers 21 programmable MOSFET digital outputs, 2 relays, dedicated START and STOP channels, an internal antenna (standard) with an optional external antenna, and 8 inputs for data feedback. Two expansion slots accept programmable relay modules, analog voltage/current output boards, digital or analog input boards, variable resistive output modules, synchronization (Synchro) boards and serial/fieldbus communication boards including RS-232/485, CANopen, Profibus DP, PROFINET, EtherCAT® and EtherNet/IP™.

Key features

• 21 programmable MOSFET digital outputs
• 2 relays with 10 A (30 VDC) rating
• START and STOP dedicated channels
• 8 inputs for data feedback
• Internal antenna (standard) or optional external antenna
• 2 expansion slots for I/O and communication boards (analog outputs, input boards, relay modules, sync boards, RS-232/485, CANopen, Profibus DP, PROFINET, EtherCAT®, EtherNet/IP™)

Technical data
Model: DCRM24
Power supply: 12–24 VDC
Antenna: Internal (standard) / External (optional)
Max number of outputs: Up to 39 on/off + START & STOP (system maximum); 21 programmable MOSFET outputs for digital control
Commands rated current: 4 A (30 VDC) solid state; 10 A (30 VDC) relays
STOP / Safety outputs rated current: STOP 6 A (30 VDC); Safety 10 A (30 VDC)
STOP safety level: up to PL d (EN ISO 13849-1)
Protection degree: IP65 (NEMA 4)
Operating temperature: -20°C to +70°C / -4°F to +158°F
Storage temperature: -40°C to +70°C / -40°F to +158°F
Connecting interfaces: Cable gland; 24- and 32-pin plug
Dimensions: 185 x 287 x 105 mm (7.28 x 11.30 x 4.13 in)
Weight: 2.2 kg (4.9 lb)

Specifications

• Model: DCRM24
• Power supply: 12–24 VDC
• Digital outputs: 21 programmable MOSFET outputs
• Additional outputs: Up to 39 on/off + START & STOP (system maximum)
• Relays: 2 relays (10 A, 30 VDC)
• Commands rated current: 4 A (30 VDC) solid state; 10 A (30 VDC) relays
• STOP / Safety outputs rated current: STOP 6 A (30 VDC); Safety 10 A (30 VDC)
• STOP safety performance: Up to PL d (EN ISO 13849-1)
• Antenna: Internal (standard); External (optional)
• Feedback inputs: 8 data feedback inputs
• Expansion: 2 slots for I/O and communication boards (RS-232/485, CANopen, Profibus DP, PROFINET, EtherCAT®, EtherNet/IP™, sync, analog I/O)
• Protection degree: IP65 (NEMA 4)
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +70°C
• Connecting interfaces: Cable gland; 24- and 32-pin plug
• Dimensions: 185 x 287 x 105 mm
• Weight: 2.2 kg
