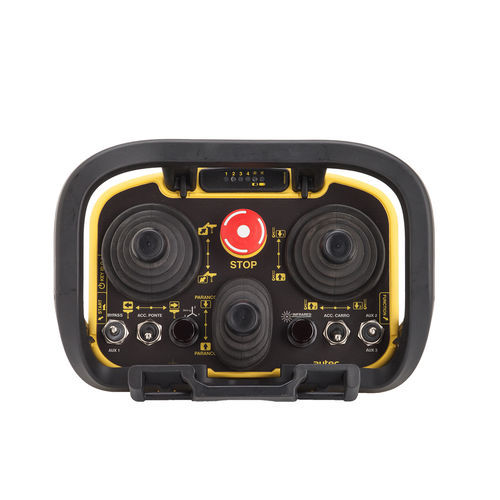

Radio control AJR

joystickwith toggle switchrotary switch

Description
AJR is a modular joystick transmitter for industrial remote control. It accepts 1–3 digital or proportional joysticks and multiple actuators and optional components. The unit is designed for multi-system control in lifting and handling equipment and other industrial applications. AJR features a bi-directional radio with automatic frequency search at start-up (434/915 MHz) and an optional data-feedback function shown on a customizable monochrome 2.7" display.

Accessories

• Shoulder strap or waist belt
• Extractable NiMH or Li‑Ion battery and charger

Actuators

• Potentiometer
• Rotary switch
• Toggle switch
• Pull-to-operate toggle switch
• Side button

Options

• Vision system — 2.7" transflective LCD graphic display (128x64 pixels) with 16 LEDs and one interaction button (monochrome, customizable icons/signals)
• Vision system — 4.3" TFT LCD display (480x270 pixels, 65,536 colors), programmable via CODESYS or Jmobile; 16 signaling LEDs and 5–6 push buttons; optional encoder
• Connection device — Cable Control (tether cable) to replace wireless link with wired connection
• Signaling device — Zero‑G sensor (activates on impact, throwing, rolling, fall >1 m or tilt beyond preset angle)
• Signaling device — IR sensor to restrict the operating area of the remote control and operator
• Signaling device — External buzzer
• Ignition device — Removable mechanical ignition key (installable if portable station lacks Key ID 0-1)

Applications

• Bridge cranes / Overhead cranes
• Boat trailers / Mobile boat trolleys
• Compactor presses / Cut & press machines
• Gantry cranes
• Robotics, machine tools, automated warehouses, container lifters, port cranes and other multi-system industrial lifting & automation applications

Technical specifications

• Power supply: 7.2 VDC (NiMH battery); 7.4 VDC (Li‑Ion battery)
• Frequency band: 433.05–434.79 MHz (64 channels); 915–928 MHz (255 channels)
• Hamming distance: ≥9
• Typical working range: up to 100 m (330 ft)
• Average usage time (continuous use at 20°C / 68°F) without display: 40 h (Li‑Ion); 20 h (NiMH)
• Average usage time with display: with 2.7" display: 20 h (Li‑Ion)
• Safety performance of STOP function (EN ISO 13849-1): up to PL d
• Protection degree: IP65 (NEMA 4)
• Operating temperature: -20°C to +55°C (-4°F to +130°F); Storage: -40°C to +70°C (-40°F to +158°F)
• Dimensions: 260 x 200 x 190 mm (10.20 x 7.90 x 7.50 in)
• Weight: 2 kg (4.4 lb)
