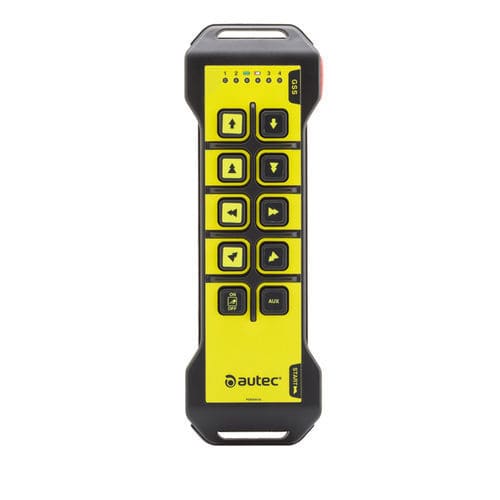

Radio control LK NEO 10

with buttonswith toggle switchrotary switch

Product overview
LK NEO is a configurable pushbutton radio transmitting unit for remote control of tower cranes, overhead cranes, hydraulic machinery and other mobile industrial applications. Available with 6, 8, 10 or 12 pushbuttons (6 or 10 versions optionally with 1.8" colour display), it supports multi-transmitter and multi-receiver configurations and a dual-band FHSS radio with automatic free-channel search. The STOP function meets safety requirements up to PL e / SIL 3 (EN ISO 13849-1 / EN IEC 62061). LK NEO includes 4 status LEDs and an integrated data logger for operation recording.

Accessories

• Pouch with belt
• Removable NiMH or Li‑Ion battery with charger

Actuators

• Potentiometer
• Rotary switch
• Toggle switch
• Pull-to-operate switch
• Side button

Options

• Removable magnetic ignition key — M-key for remote ignition
• Removable mechanical ignition key — ID 0-1 mechanical key for remote ignition
• IR sensor — limits operating area of remote and operator
• Zero-G sensor — activates on impact, throwing, rolling, fall >1 m or tilt beyond preset angle
• Enabling switch — enables commands only while held in intermediate position
• Enabling & STOP — safe start when 3-position button held in intermediate position; release or full press stops machine immediately
• Cable control (tether cable) — wired connection option replacing wireless link

Technical data sheet
Power supply: 3.7 VDC (Li‑ion) / 3.6 VDC (NiMH)
Frequency bands: 433.05–434.79 MHz (64 channels); 863–870 MHz (128 channels); 915–928 MHz (255 channels)
Typical range: 100 m (330 ft)
Typical continuous use (20 °C): >16 h with Li‑ion; >8 h with NiMH
STOP safety (EN ISO 13849-1): up to PL e (SIL 3 equivalent per EN IEC 62061)
Ingress protection: IP65 (NEMA 4)
Operating temperature: -20 °C to +55 °C
Storage temperature: -40 °C to +70 °C
Dimensions: 265 x 85 x 49 mm (10.43 x 3.35 x 1.92 in)
Weight: 450 g (0.992 lb)

Technical specifications

• Model family: AIR Series pushbutton transmitter
• Available button counts: 6, 8, 10, 12 (6 or 10 with 1.8" colour display)
• Radio: dual-band FHSS with automatic free-channel search (supports listed bands)
• STOP safety: up to PL e (EN ISO 13849-1) / SIL 3 (EN IEC 62061)
• Visual feedback: 4 status LEDs
• Data logging: integrated data logger for remote control operations
• Battery options: removable NiMH or Li‑Ion (3.6 V / 3.7 V)
• Typical range: 100 m (330 ft)
• Ingress protection: IP65 (NEMA 4)
• Operating temp: -20 °C to +55 °C; Storage temp: -40 °C to +70 °C
• Dimensions: 265 x 85 x 49 mm
• Weight: 450 g
