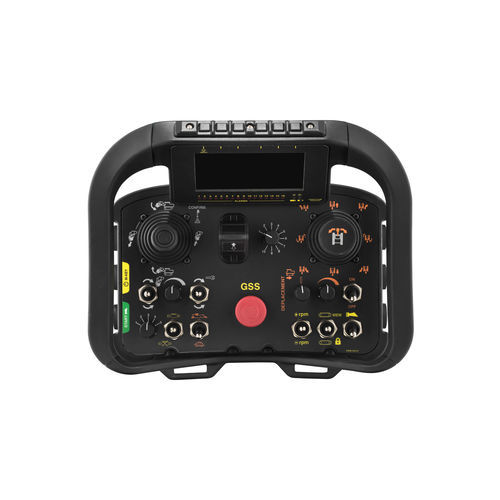

Radio control R‑PRO AJT

with buttonsjoystickwith toggle switch

Overview
R-PRO is the AUTEC regular-size portable station designed to control a wide range of machines, especially on construction sites. It is equipped with multiple actuators, joysticks and side buttons and is designed to offer high performance and ergonomic operation. Two frame versions are available: one with the data-feedback system (display or LED array) and one without, to reduce size and weight.

Accessories

• Waist belt
• Shoulder strap
• Extractable Li-Ion or NiMH battery and charger

Actuators

• Potentiometer
• Rotary switch
• Toggle switch
• Pull-to-operate toggle switch
• Side button

Options

• Vision system
  4.3" TFT LCD display (480x270 pixels, 65,536 colors). Extreme brightness and readability in sunny conditions. Programmable via CODESYS or Jmobile. It includes 16 signaling LEDs and five or six buttons for interaction; optional encoder available.
• Signaling device
  32 LED Matrix: 32 diagnostic LEDs, adjustable light intensity, NIGHT & DAY mode available.
• LED on panel
  Possibility to insert LEDs on the panel to provide feedback about specific maneuvers/selections.
• Connection device
  Cable Control (Tether Cable) to connect the cable station to the base station using a wired connection instead of wireless.
• Protection system
  Bellows for joysticks (silicone) to increase protection.
• Marine environment protection
  Corrosion-proof components and treatment to resist salt and humidity.
• Zero-G sensor
  Activates in case of impact, throwing, rolling, falling from >1 m or tilting beyond a preset angle.
• IR Sensor
  Used to restrict the remote control operating area and the operator.
• External buzzer
  Used to emit sound signals in certain situations.

Applications
Designed for use on construction cranes, magnets/underhook attachments, conveyor belts, automatic warehouses, machine tools, robotics, container lifters, forestry haulage systems, port cranes and similar heavy machinery applications.

Caractéristiques / spécifications techniques

• Power supply: 7.4 VDC with LPM02, LPM04 or MBM06MH battery
• Frequency band: 870 - 915 MHz, FHSS
• Typical working range: 100 m (330 ft)
• Average usage time with fully charged battery (continuous use at 20°C / 68°F): with LPM02 battery: 24 h without display; with LPM04 battery: 10 h with 4.3" display; with MBM06MH battery: 12 h without display
• Protection degree: IP65, NEMA 4
• Operating temperature: -20 °C ÷ +55 °C (-4 °F ÷ +130 °F)
• Storage temperature: -40 °C ÷ +70 °C (-40 °F ÷ +158 °F)
• Safety performance of GSS/EMS/ATS function: up to PL e, SIL 3 (EN ISO 13849-1 / EN IEC 62061)
• Dimensions: 289 x 231 x 199 mm (11.4 x 9.1 x 7.8 in) with display; 289 x 193 x 199 mm (11.4 x 7.6 x 7.8 in) without display
• Weight: 3.2 kg (7.1 lb)
