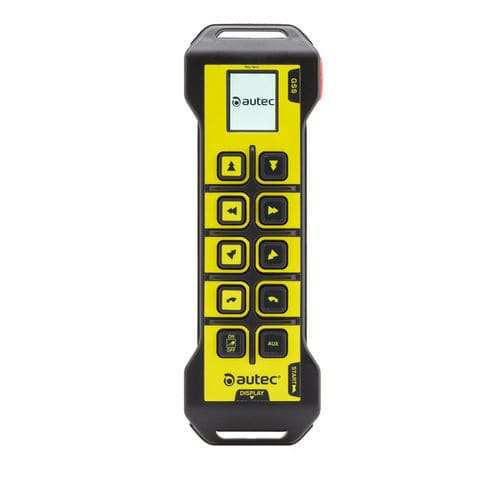

Radio control LK NEO 10 DF

with buttonswith toggle switchwith configurable buttons

Product overview
LK NEO is a configurable remote pushbutton transmitter for control of tower cranes, overhead cranes, hydraulic equipment and mobile machinery. It integrates AIR Series radio technology with dual-band FHSS (frequency hopping) operation and multiple configuration options. The STOP function is certified up to PL e, SIL 3 (EN ISO 13849-1 / EN IEC 62061). LK NEO includes 4 status LEDs, an integrated data logger for recording remote operations and is offered in 6, 8, 10 and 12 button configurations; 6- and 10-button versions are available with a programmable 1.8" color display. Multi-transmitter and multi-receiver radio architectures are supported.

Accessories

• Pouch with belt
• Extractable NiMH or Li-Ion battery with charger

Actuators

• Potentiometer
• Rotary switch
• Toggle switch
• Pull-to-operate switch
• Side button

Options

• Removable magnetic ignition key — M-key magnetic key for remote control ignition
• Removable mechanical ignition key — ID 0-1 mechanical key for remote control ignition
• IR sensor — restricts operating area of the remote control and operator
• Zero-G sensor — activates on impact, throwing, rolling, fall >1 m or excessive tilt
• 1.8" color display (128x160 px) — programmable to show icons or text; suitable for indoor/outdoor use
• Haptic feedback — vibration feedback for noisy environments
• Enabling switch — enables commands only while held in intermediate position
• Enabling & STOP — safe start only when 3-position button is held intermediate; releasing or full press stops machine immediately
• Cable control (tether cable) — wired alternative to wireless link

Technical data sheet
Power supply: 3.7 VDC (Li-ion battery)
Frequency band: 433.05–434.79 MHz (64 channels); 863–870 MHz (128 channels); 915–928 MHz (255 channels)
Typical working range: 100 m / 330 ft
Average usage time (continuous @20 °C): >10 h with Li-ion battery
STOP function safety (EN ISO 13849-1): up to PL e, SIL 3
Ingress protection: IP65 (NEMA 4)
Operating temperature: -20 °C to +55 °C (alternative up to +60 °C)
Storage temperature: -40 °C to +70 °C
Dimensions: 265 x 85 x 49 mm
Weight: 450 g

Technical specifications

• Model: LK NEO 10 DF (AIR Series)
• Power supply: 3.7 VDC (Li-ion battery)
• Radio frequency bands and channels: 433.05–434.79 MHz (64 ch); 863–870 MHz (128 ch); 915–928 MHz (255 ch)
• Working range: approx. 100 m (330 ft)
• Battery life (continuous @20 °C): >10 h (Li-ion)
• STOP function safety: up to PL e, SIL 3 (EN ISO 13849-1 / EN IEC 62061)
• Ingress protection: IP65 (NEMA 4)
• Operating temperature: -20 °C to +55 °C (alternative up to +60 °C); storage -40 °C to +70 °C
• Available button configurations: 6, 8, 10, 12; 6 or 10 with 1.8" color display option
• Visual indicators: 4 status LEDs
• Data logging: built-in data logger for remote control operations
• Dimensions: 265 x 85 x 49 mm
• Weight: 450 g
