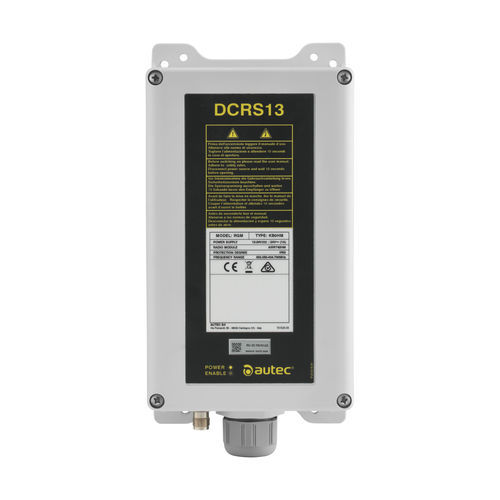

Radio receiver DCRS13

wirelessfor remote controlfor radio remote control

Overview
DCRS13 is a DC-powered receiving unit intended for mobile machinery and industrial automation. It features 12 programmable on/off relays plus START and STOP functions, an internal standard antenna with an optional external antenna, and 4 inputs for data feedback. The unit offers a compact footprint and a protective enclosure suitable for harsh environments.

Key features

• 12 programmable on/off relays plus dedicated START and STOP outputs
• Internal standard antenna; optional external antenna for extended range
• 4 dedicated inputs for data feedback and status monitoring
• Designed for mobile equipment and automation control systems
• Enclosure with high protection degree (IP65 / NEMA 4)

Technical specifications

• Power supply: 12-24 VDC
• Antenna: Internal standard; external optional
• Max number of outputs: 12 on/off + START and STOP
• Commands rated current: 6 A (250 VAC)
• Rated current of STOP / Safety outputs: 4 A (250 VAC)
• Safety performance of the STOP function (EN ISO 13849-1): up to PL d
• Protection degree: IP65 (NEMA 4)
• Operating temperature: (-20°C) ÷ (+70°C) / (-4°F) ÷ (+158°F)
• Storage temperature: (-40°C) ÷ (+70°C) / (-40°F) ÷ (+158°F)
• Connecting interfaces: Cable gland; 16-pin reduced plug
• Dimensions: 123 x 258 x 83 mm (4.84 x 10.16 x 3.27 in)
• Weight: 1.2 kg (2.7 lb)
