Radio control CURVE AJQ

joystickwith toggle switchrotary switch

Overview

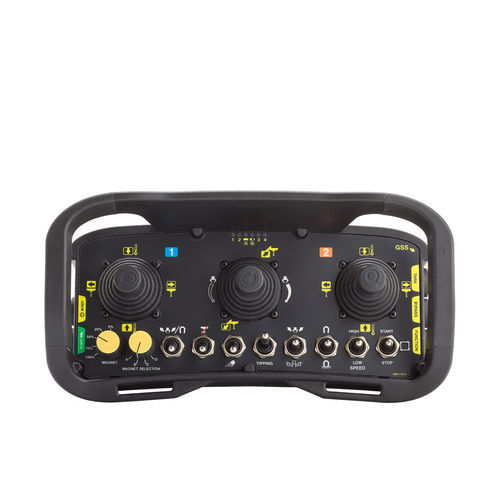

CURVE AJQ is a joystick transmitting unit that can house up to 3 multi-axis joysticks. Thanks to AIR Series technology, it is suitable for remote control of overhead cranes, boat trailers, compactor presses, gantry cranes and other industrial applications, in single or multi-unit configurations. CURVE features an FHSS bi-directional radio (870/915 MHz) and an optional customizable 2.8" color TFT LCD graphic display with data feedback providing machine status information.

Accessories

• Waist belt
• Removable NiMH or Li‑Ion battery and charger

Actuators

• Potentiometer
• Rotary switch
• Toggle switch
• Pull-to-operate toggle switch
• Toggle switch with safety cap
• Side pushbutton

Options and signaling / sensing devices

• Cable control (tether cable) — wired connection alternative to radio
• Zero-G sensor — activates on impact, throwing, rolling, fall from >1 m or tilt beyond preset angle
• IR sensor — restricts the operating area of the remote and operator
• 2.8" TFT LCD display (320x240 pixels, 65536 colors) — 16 LEDs, five interaction buttons and optional encoder; suitable for indoor/outdoor use
• 32 LED matrix — 32 diagnostic LEDs with adjustable intensity and NIGHT & DAY mode
• External buzzer — acoustic signaling
• Removable mechanical ignition key — available if portable station lacks Key ID 0-1

Applications (examples)

• Overhead cranes
• Cut & press machines
• Mobile boat trolleys / boat haulers
• Gantry cranes

Custom products / Examples of customizations
Custom implementations include adaptations for boat haulers, fire engines and rolling mills.

Technical characteristics / specifications

• Power supply: 7.2 V DC (NiMH); 7.4 V DC (Li‑Ion)
• Frequency band: 870 / 915 MHz FHSS
• Hamming distance: ≥9
• Typical range: up to 100 m (330 ft)
• Battery life (continuous use at 20°C/68°F) without display: 24 h (Li‑Ion); 12 h (NiMH)
• Battery life with 2.8" display: 10 h (Li‑Ion)
• Safety STOP performance (EN ISO 13849-1 / EN IEC 62061): up to PL e, SIL 3
• Safety GSS/EMS/ATS performance: up to PL e, SIL 3 (EN ISO 13849-1 / EN IEC 62061)
• Protection degree: IP65 (NEMA 4)
• Operating temperature: -20°C to +55°C (-4°F to +130°F)
• Storage temperature: -40°C to +70°C (-40°F to +158°F)
• Dimensions: 309 x 170 x 182 mm (12.20 x 6.70 x 7.20 in)
• Weight: 2.4 kg (5.3 lb)
