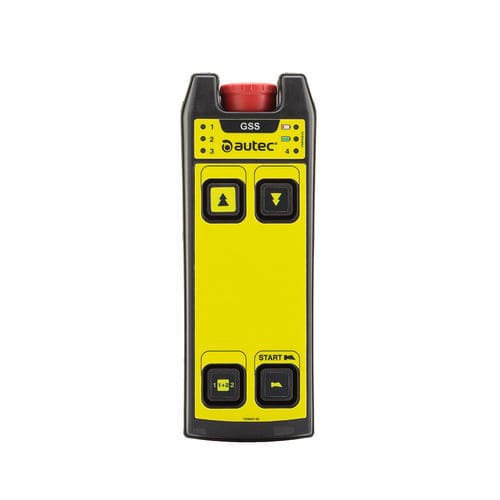

Radio control A4/A4B

with configurable buttonswith buttonsfor cranes

Product description
The AIR Series handheld transmitters are lightweight, compact handheld radio remote controls designed for industrial applications. They feature multi-function pushbuttons and a navigation menu to configure functions and settings according to the application. Two versions are available:

• Internal Li-Ion battery version (A4, A6, A8) — rechargeable via Docking Station
• External Li-Ion battery version (A4B, A6B, A8B) — two removable batteries, battery charger and extractable power key switch kit included

Additional information
Each unit contains an internal ID memory storing the unique address of the radio remote and its usage configuration. Transmitters are compatible with any AIR Series receiver unit and can be combined as required.

Standard Accessories

• Pouch with belt
• Battery charger or Docking Station for recharging (depending on version)

Options

• Wall-mountable cradle — storage nest for the transmitter

Applications

• Overhead cranes
• Magnets / underhook attachments
• Conveyor belts
• Machine tools
• Hoists & winches
• Jib cranes
• Tow vehicles
• Ladders

Technical specifications

• Frequency band: 433.05-434.79 MHz (64 channels); 915-928 MHz (255 channels)
• Hamming distance: ≥9
• Typical working range: 75-100 m (240-330 ft)
• Average usage time with fully charged battery (continuous use at 20°C / 68°F): 40 h with internal Li-Ion battery (A4, A6, A8); 16 h with external Li-Ion battery (A4B, A6B, A8B)
• Safety performance of the STOP function (EN ISO 13849-1): up to PL d
• Protection degree: IP65 (NEMA 4)
• Operating temperature: -20°C ÷ +55°C (-4°F ÷ +130°F); Storage temperature: -40°C ÷ +70°C (-40°F ÷ +158°F)
• Dimensions: 64.5 x 179 x 37.5 mm (2.54 x 7.05 x 1.48 in)
• Weight: 250 g (0.55 lb)
