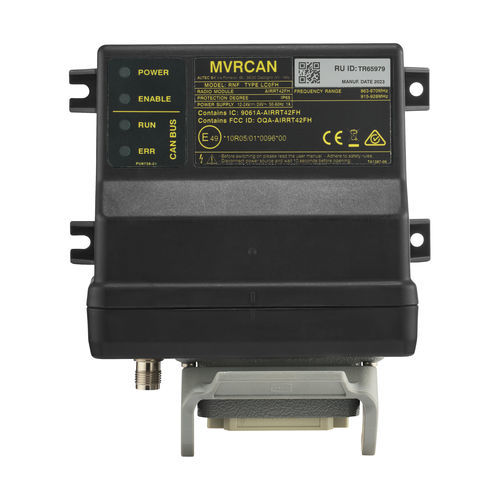

Radio receiver MVRCAN

wirelessdigitalharsh environment

Description
Compact AC/DC receiver providing CANopen 2.0 I/O for integration into mobile and industrial equipment. Supplied with an external antenna; an internal antenna is available as an option. Delivers four programmable on/off relays plus a dedicated STOP (safety) output with safety performance up to PL d (EN ISO 13849-1). Built for harsh environments with IP65 protection and a wide operating temperature range.

Main functions

• AC/DC receiver compatible with 12–24 VDC and 24 VAC
• Serial I/O: CANopen 2.0 for network integration
• 4 programmable on/off relays plus dedicated STOP (safety) output
• External antenna standard; internal antenna optional

Applications

• Control and safety outputs for mobile machinery and industrial equipment requiring CANopen connectivity and multiple outputs

Technical specifications

• Power supply: 12-24 VDC; 24 VAC
• Antenna: External (standard); Internal optional
• I/O serial: CANopen 2.0
• Max number of outputs: 4 on/off + STOP
• Commands rated current: 4 A (250 VAC)
• Rated current of STOP / Safety outputs: 6 A (30 VDC)
• Safety performance of the STOP function (EN ISO 13849-1): up to PL d
• Protection degree: IP65 (NEMA 4)
• Operating temperature: -20°C ÷ +70°C / -4°F ÷ +158°F
• Storage temperature: -40°C ÷ +70°C / -40°F ÷ +158°F
• Connecting interfaces: 10-pin reduced plug
• Dimensions: 144 x 162 x 85 mm (5.67 x 6.38 x 3.35 in)
• Weight: 650 g (1.43 lb)
