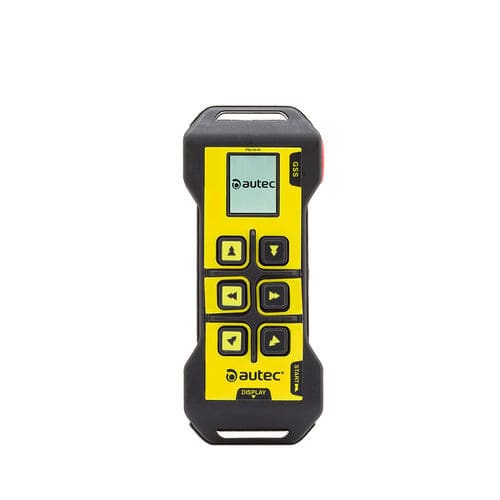

Radio control LK NEO 6 DF

with buttonswith toggle switchwith configurable buttons

Product overview
LK NEO is a configurable wireless pushbutton transmitting unit for remote control of tower cranes, overhead cranes, hydraulic machines and other mobile applications. It integrates AIR Series technology, multiple selectable options and a dual‑band FHSS radio with automatic free‑channel search. The STOP function is certified up to PL e, SIL 3 (EN ISO 13849‑1 / EN IEC 62061). LK NEO includes 4 status LEDs, a data logger for control events and is available in 6, 8, 10 and 12‑button versions. Two variants (6 or 10 buttons) include a customizable 1.8" colour display. The unit supports multi‑transmitter and multi‑receiver configurations for complex radio control solutions.

Accessories

• Pouch with belt
• Removable NiMH or Li‑ion battery with charger

Actuators

• Potentiometer
• Rotary switch
• Toggle switch
• Pull‑to‑operate switch
• Side button

Options

• Ignition device: Removable magnetic ignition key (M‑key); removable mechanical ignition key (ID 0‑1).
• Signalling device: IR sensor (restricts operating area); Zero‑G sensor (triggers on impact, throwing, rolling, fall >1 m or tilt beyond preset angle).
• Vision system: 1.8" colour display (128x160 px) showing icons or text for indoor/outdoor use.
• Haptic feedback: Vibration feedback for noisy environments.
• Control device: Enabling switch (commands active when held in intermediate position); Enabling & STOP (safe start only when 3‑position button held intermediate; releasing or full press stops immediately).
• Connection device: Cable control (tether cable) to connect cable station to base station as wired alternative.

Technical data sheet
Power supply: 3.7 V DC (Li‑ion battery)
Frequency bands: 433.05–434.79 MHz (64 channels); 863–870 MHz (128 channels); 915–928 MHz (255 channels)
Typical working range: 100 m / 330 ft
Average usage time (continuous @ 20°C): > 10 h (Li‑ion)
STOP safety performance: up to PL e, SIL 3 (EN ISO 13849‑1)
Protection degree: IP65 (NEMA 4)
Operating temperature: -20 °C to +55 °C / -4 °F to +130 °F
Storage temperature: -40 °C to +70 °C / -40 °F to +158 °F
Dimensions: 207.5 x 85 x 49 mm / 8.17 x 3.35 x 1.92 in
Weight: 380 g / 0.837 lb

Technical specifications

• Power supply: 3.7 V DC (Li‑ion)
• Frequency bands: 433.05–434.79 MHz (64 ch); 863–870 MHz (128 ch); 915–928 MHz (255 ch)
• Typical range: 100 m (330 ft)
• Battery life (continuous @ 20°C): > 10 h (Li‑ion)
• STOP safety performance: up to PL e (EN ISO 13849‑1)
• Protection: IP65 (NEMA 4)
• Operating temperature: -20 °C to +55 °C
• Storage temperature: -40 °C to +70 °C
• Dimensions: 207.5 x 85 x 49 mm
• Weight: 380 g
