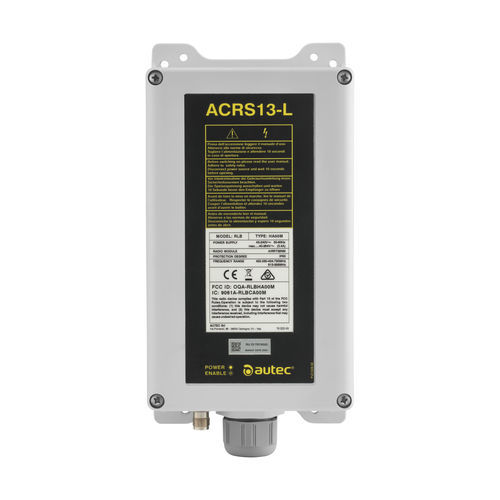

Radio receiver ACRS13-G/L

wirelessfor remote controlindustrial

Product overview
The ACRS13-G / ACRS13-L are AC receiving units designed for industrial automation control. Both versions provide 12 programmable relay outputs plus START and STOP functions. The ACRS13-G features a replaceable power module and 4 Data Feedback inputs; the ACRS13-L uses a fixed integrated power supply. Available with an internal standard antenna or an optional external antenna.

Applications

• Mixers
• Concrete batch plants
• Crushers / screeners
• Magnets / underhook attachments
• Conveyor belts
• Machine tools
• Hoists & winches
• Side loaders
• Tow vehicles
• Grinders for agriculture
• Forestry and agriculture vehicles
• Ladders

Technical data sheet
Power supply: 45-230 VAC
Antenna: Internal standard; External optional
Max number of outputs: 12 on/off + Start and STOP
Commands rated current: 6 A (250 VAC)
Rated current of STOP / Safety outputs: 4 A (250 VAC)
Safety performance of the STOP function (EN ISO 13849-1): up to PL d
Protection degree: IP65 (NEMA 4)
Operating temperature: operating (-20°C) ÷ (+70°C) / (-4°F) ÷ (+158°F); storage (-40°C) ÷ (+70°C) / (-40°F) ÷ (+158°F)
Connecting interfaces: Cable gland
Dimensions: 123 x 258 x 83 mm / 4.84 x 10.16 x 3.27 in
Weight: 1.2 kg / 2.7 lb

Characteristics / technical specifications

• Model family: ACRS13-G / ACRS13-L
• AC receiving unit with modular (G) or fixed (L) power supply
• 12 programmable relay outputs plus START and STOP functions
• Replaceable power module (ACRS13-G); fixed integrated power supply (ACRS13-L)
• 4 inputs for Data Feedback (ACRS13-G)
• Optional external antenna or internal standard antenna
• Output switching capacity: 6 A at 250 VAC
• STOP / safety outputs rated: 4 A at 250 VAC
• STOP function safety performance up to PL d (EN ISO 13849-1)
• Protection: IP65 (NEMA 4)
• Operating temperature range: -20°C to +70°C; storage -40°C to +70°C
• Connecting interface via cable gland
• Dimensions: 123 x 258 x 83 mm; Weight: 1.2 kg
