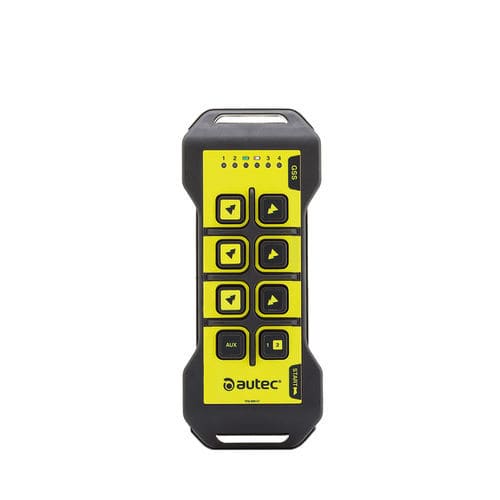

Radio control LK NEO 8

with buttonswith toggle switchwith configurable buttons

Product overview
LK NEO is a configurable pushbutton transmitting unit for remote control of tower cranes, overhead cranes, hydraulic machines and other mobile industrial applications. It integrates a dual-band FHSS radio with automatic free-channel search, 4-LED status feedback and an internal data logger to record remote-control operations. Available versions: 6, 8, 10 and 12 pushbuttons; 6- and 10-button versions optionally include a 1.8" color display. The STOP function is rated up to PL e, SIL 3 according to EN ISO 13849-1 / EN IEC 62061.

Accessories

• Pouch with belt
• Removable NiMH or Li‑Ion battery with charger

Actuators

• Potentiometer
• Rotary switch
• Toggle switch
• Pull-to-operate switch
• Side button

Options (selected)

• Removable magnetic ignition key (M-key) – magnetic key for remote-control ignition
• Removable mechanical ignition key (ID 0-1) – mechanical key for remote-control ignition
• IR sensor – restricts the operating area of the remote control and operator
• Zero-G sensor – detects impact, throwing, rolling, fall from height (>1 m) or tilt beyond preset angle
• Enabling switch – enables commands only while held in intermediate position
• Enabling & STOP (3-position) – safe start when held in intermediate; releasing or fully pressing stops the machine
• Cable Control (Tether Cable) – wired connection of the cable station to the base station

Functional highlights

• Dual-band FHSS radio with automatic free-channel search
• 4-LED feedback for machine/status visualization
• Integrated data logger for operation recording
• Configurable pushbutton count: 6, 8, 10, 12; optional color display for selected versions
• Supports multi-transmitter / multi-receiver radio control architectures
• STOP function safety up to PL e, SIL 3
• Protection degree IP65 (NEMA 4)

Technical specifications

• Power supply: 3.7 V DC (Li‑ion battery); 3.6 V DC (NiMH battery)
• Frequency bands: 433.05–434.79 MHz (64 channels); 863–870 MHz (128 channels); 915–928 MHz (255 channels)
• Typical working range: 100 m (330 ft)
• Average continuous usage (20 °C / 68 °F): > 16 h with Li‑ion; > 8 h with NiMH
• Safety performance of STOP function (EN ISO 13849-1): up to PL e
• Protection degree: IP65 (NEMA 4)
• Operating temperature: -20 °C to +55 °C (-4 °F to +130 °F); Storage: -40 °C to +70 °C (-40 °F to +158 °F)
• Dimensions: 207.5 x 85 x 49 mm (8.17 x 3.35 x 1.92 in)
• Weight: 380 g (0.837 lb)
