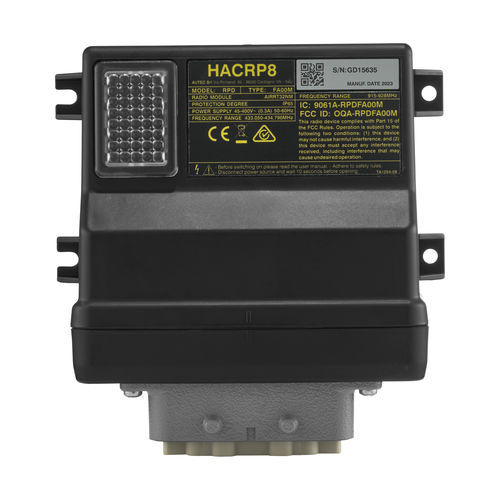

Radio receiver HACRP8

wirelessfor remote controlfor radio remote control

Overview
AC-powered receiving unit for industrial remote control, model HACRP8. Supports 45–400 VAC supply and provides seven programmable on/off relays plus START and STOP functions. Includes a dedicated enabling output, integrated signal lights, optional horn/buzzer and internal antenna; external dipole antenna with RP-TNC connector is supported.

Technical data sheet

• Power supply: 45–400 VAC
• Antenna: internal included; supports dedicated external dipole with RP-TNC connector
• Max outputs: 7 programmable on/off relays + START and STOP
• Commands rated current: 4 A @ 250 VAC
• STOP / Safety outputs rated current: 4 A @ 250 VAC
• Safety performance (STOP): up to PL d (EN ISO 13849-1)
• Protection degree: IP65 (NEMA 4)
• Operating temperature: -20°C to +70°C (-4°F to +158°F)
• Storage temperature: -40°C to +70°C (-40°F to +158°F)
• Connecting interfaces: cable gland; 10-pin reduced plug
• Dimensions: 144 x 162 x 73 mm (5.67 x 6.38 x 2.87 in)
• Weight: 650 g (1.43 lb)

Applications / Typical uses

• Industrial automation receiving unit for remote control of machinery
• Machines requiring multiple programmable relay outputs and a safety STOP function (up to PL d)
• Outdoor or washdown environments requiring IP65 protection

Technical specifications

• Model: HACRP8
• Power supply range: 45–400 VAC
• Antenna: dedicated external dipole type with RP-TNC; internal antenna included
• Outputs: 7 programmable on/off relays plus START and STOP
• Dedicated enabling output for commands
• Commands rated current: 4 A @ 250 VAC
• STOP / Safety outputs rated current: 4 A @ 250 VAC
• Safety performance (STOP): up to PL d (EN ISO 13849-1)
• Protection: IP65 (NEMA 4)
• Operating temp: -20°C to +70°C (-4°F to +158°F)
• Storage temp: -40°C to +70°C (-40°F to +158°F)
• Connecting interfaces: cable gland; 10-pin reduced plug
• Dimensions: 144 x 162 x 73 mm (5.67 x 6.38 x 2.87 in)
• Weight: 650 g (1.43 lb)
• Integrated signal lights; optional horn/buzzer
• Internal antenna included; supports dedicated external antenna
