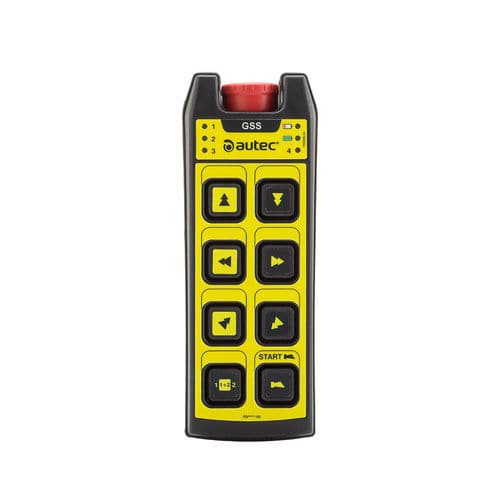

Radio control A8/A8B

with buttonswith configurable buttonsfor vehicles

Overview
The AIR Series handheld transmitters are light, compact and robust solutions, equipped with multi-function pushbuttons and a navigation menu to optimize functionality and settings according to the requested application. They are available in two versions:

• with internal Li‑Ion battery (A4, A6, A8) rechargeable through Docking Station
• with two external Li‑Ion batteries (A4B, A6B, A8B), battery charger and extractable power key switch kit for start-up (comes standard)

Both versions include an ID internal tx memory that contains the unique and univocal address of the radio remote control and information that defines its mode of use. They can be combined with any AIR Series receiving unit.

Standard Accessories

• Pouch with belt
• Battery charger or Docking Station for recharge

Options

• Wall mountable nest: Wall‑mountable cradle for storage of transmitting unit.

Applications

• Mixers
• Tracked vehicles
• Overhead cranes
• Magnets / underhook attachments
• Conveyor belts
• Machine tools
• Hoists & winches
• Jib cranes
• Gantry cranes
• Tow vehicles
• Ladders

Technical data sheet
Frequency band: 433.05-434.79 MHz (64 channels); 915-928 MHz (255 channels)
Hamming distance: ≥9
Typical working range: 75-100 m / 240-330 ft
Average usage time with fully charged battery (continuous use at 20°C / 68°F): 40 h with internal Li‑ion battery (A4, A6, A8); 16 h with external Li‑ion battery (A4B, A6B, A8B)
Safety performance of the STOP function (EN ISO 13849-1): up to PL d
Protection degree: IP65 (NEMA 4)
Operating and storage temperature: operating: (-20°C) ÷ (+55°C) / (-4°F) ÷ (+130°F); storage: (-40°C) ÷ (+70°C) / (-40°F) ÷ (+158°F)
Dimensions: 64.5 x 179 x 37.5 mm / 2.54 x 7.05 x 1.48 in
Weight: 250 g / 0.55 lb

Technical specifications

• Series: AIR handheld transmitters (A8 / A8B)
• Frequency options: 433.05–434.79 MHz (64 ch) or 915–928 MHz (255 ch)
• Hamming distance: ≥9
• Range (typical): 75–100 m (240–330 ft)
• Battery runtime: up to 40 h (internal Li‑ion); up to 16 h (external Li‑ion)
• STOP function safety: up to PL d (EN ISO 13849-1)
• Ingress protection: IP65 (NEMA 4)
• Operating temperature: -20°C to +55°C; Storage: -40°C to +70°C
• Dimensions: 64.5 x 179 x 37.5 mm
• Weight: 250 g
