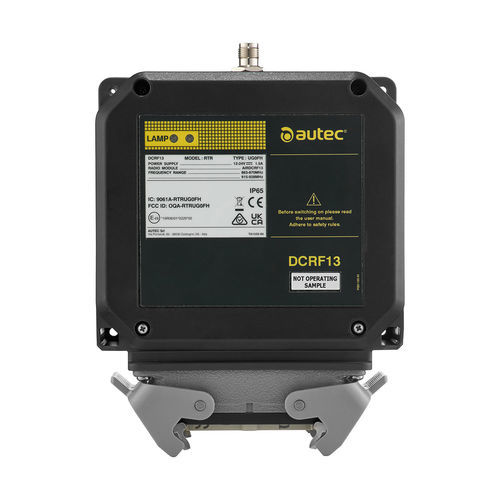

Mobile network base station DCRF13

for wireless networksoutdoordata transmission

Overview
DCRF13 is a compact base station in AUTEC's AIR series designed for forestry and mobile applications. It complies with UNI EN 17067:2019 radio remote control safety regulations for forestry machinery.

Main features

• Compact AIR base station
• Designed for forestry and mobile applications
• Compliant with UNI EN 17067:2019
• Up to 13 outputs
• Protection degree IP65 / NEMA 4

Technical data (table)
Power supply: 12-24 Vdc (1.5 A)
Frequency band: 870 MHz and 915 MHz FHSS
Antenna: dedicated external, dipole-type with RP-TNC connector
Max number of Optional Boards: 1
Max number of outputs: up to 13
Commands rated current: 5 A (30 Vdc) relays; 4 A (30 Vdc) solid state (MOSFET)
Rated current of STOP / Safety outputs: 6 A (30 Vdc)
Safety performance of the STOP function (EN ISO 13849-1): up to PL e (UNI EN ISO 13849-1:2016)
Protection degree: IP65, NEMA 4
Operating and storage temperature: operating: -40 °C ÷ +70 °C / -40 °F ÷ +158 °F; storage: -40 °C ÷ +70 °C / -40 °F ÷ +158 °F
Connecting interfaces: M20/M25 cable glands or 16/24 poles plug
Dimensions: 150 x 165.5 x 60 mm (5.9 x 6.5 x 2.4 in) with two M20 cable glands
Weight: 1 kg (2.2 lb)

Characteristics / Technical specifications

• Model series: AIR
• Power supply: 12-24 Vdc (1.5 A)
• Frequency bands supported: 870 MHz and 915 MHz FHSS
• External dipole antenna with RP-TNC connector
• Optional boards: max 1
• Outputs: up to 13
• Commands rated current: 5 A (30 Vdc) relays; 4 A (30 Vdc) MOSFET
• STOP / Safety outputs rated current: 6 A (30 Vdc)
• STOP safety performance: up to PL e (EN ISO 13849-1)
• Protection: IP65 / NEMA 4
• Operating temperature range: -40 °C to +70 °C
• Storage temperature range: -40 °C to +70 °C
• Connecting interfaces: M20/M25 cable glands or 16/24 poles plug
• Dimensions: 150 x 165.5 x 60 mm
• Weight: 1 kg (2.2 lb)
