Radio control AJC

with buttonsjoystickwith toggle switch

Overview

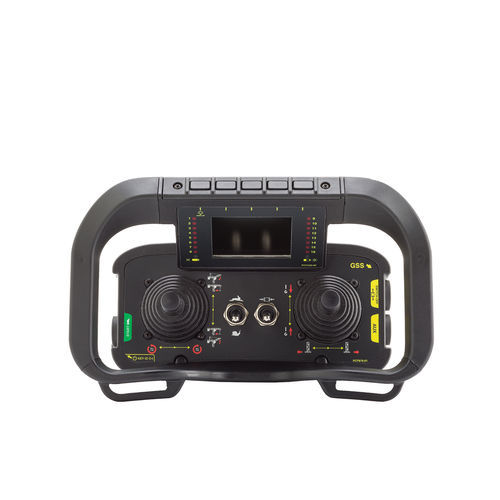

COMPACT AJC is a portable belt and harness transmitter for remote control of heavy machinery in demanding industrial environments. It provides a reliable 870/915 MHz FHSS radio link, meets functional safety requirements (STOP up to PL e, SIL 3), and is ergonomically shaped to reduce accidental activations. The top frame includes rubber handles and an optional 2.8" TFT color display. The unit offers mechanical and chemical resistance, IP65 protection and drop resistance to 1.5 m.

Key features

• Ergonomic belt and harness design to prevent involuntary activations
• Integrated rubber handles on top frame
• Optional 2.8" color TFT display
• Reliable 870/915 MHz FHSS radio link; Hamming distance ≥ 9
• Rugged construction: mechanical and chemical resistance, IP65 (NEMA 4), 1.5 m drop rating

Accessories

• Shoulder strap or waist belt
• Removable NiMH or Li‑Ion battery and charger

Actuators

• Potentiometer
• Rotary switch
• Toggle switch
• Pull-to-operate toggle switch
• Side button

Options and add-ons

• Vision system — 2.8" TFT LCD (320×240, 65,536 colors) with 16 LEDs and five interaction buttons; optional encoder; suitable for indoor and outdoor use
• IR sensor — restricts operating area of the remote and operator
• Zero-G sensor — activates on impact, throw, roll, fall >1 m or tilt beyond preset angle
• External buzzer — audible signaling device
• 32 LED matrix — 32 diagnostic LEDs with adjustable intensity and NIGHT & DAY mode
• Removable mechanical ignition key — installable when Key ID 0-1 is not present
• Tether cable (cable control) — wired connection from cable station to base station as alternative to wireless

Applications / Typical uses
Suitable for overhead cranes, gantry and construction cranes, machine tools, tracked vehicles, magnets/underhook attachments, robotics, container handling, automated warehouses, agricultural grinders, port cranes and other heavy equipment in demanding industrial environments.

Technical specifications

• Power supply: 7.2 VDC (NiMH) or 7.4 VDC (Li‑Ion)
• Frequency band: 870/915 MHz FHSS
• Hamming distance: ≥ 9
• Typical working range: up to 100 m (330 ft)
• Continuous use at 20°C / 68°F without display: 24 h (Li‑Ion), 12 h (NiMH)
• Continuous use at 20°C / 68°F with 2.8" display: 10 h (Li‑Ion)
• Safety performance of STOP (EN ISO 13849-1 / EN IEC 62061): up to PL e, SIL 3
• Protection degree: IP65 (NEMA 4)
• Operating temperature: -20°C to +55°C (-4°F to +130°F)
• Storage temperature: -40°C to +70°C (-40°F to +158°F)
• Dimensions: 260 × 177 × 161 mm (10.2 × 6.9 × 6.3 in)
• Weight: 1.8 kg (3.9 lb)
