Clean room tweezer 5-090-V

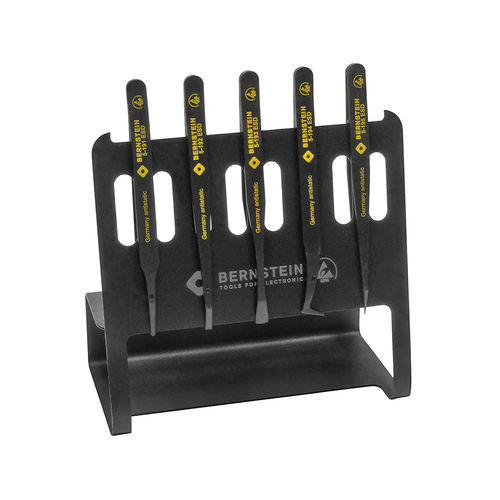

The ESD plastic precision tweezers set VARIO is a 5-piece antistatic tweezers kit designed for safe handling of sensitive components in cleanrooms and electronic assembly environments. It includes a dissipative tool holder (VARIO) for storage and quick identification of tools.

Key features

• Includes dissipative tool holder (VARIO) with conductive coating (approx. 10^5 Ω).
• Tool holder: 8 slots Ø 9 mm, 140 mm width for hanging tools; can be freestanding or wall-mounted (mounting holes Ø 6 mm).
• Tweezers made of dissipative glass fibre reinforced plastic (PA12 Vestamid), conductive approx. 10^5 Ω; anti-magnetic, silicone- and Armin-free.
• High chemical resistance (resistant to acids) and heat resistance up to 175 °C.
• Different tweezer tip shapes included: pointed, wide, bent; surfaces matt and smooth for reliable gripping.

Area of application
The tweezers are permanently antistatic and electrically conductive, suitable for work in cleanrooms or on technical equipment such as sensors, lithography machines, mirrors and optics of laser equipment, as well as general machine and apparatus construction. They provide coordinated tip closure to hold components with constant pressure. The VARIO tool holder accepts pliers, tweezers, screwdrivers or round objects up to 9 mm diameter and features a lower recess to quickly identify tool tips and a locking aid to keep tools in position.

Content

• 5-090-0 ESD tool holder VARIO (8 slots)
• 5-191 ESD plastic tweezers 120 mm form 2a (tips 2 mm wide)
• 5-192 ESD plastic tweezers 120 mm form F (tips 3 mm wide)
• 5-193 ESD plastic tweezers 120 mm form 35 (tips 6 mm wide)
• 5-194 ESD plastic tweezers 120 mm form 6
• 5-195 ESD plastic tweezers 120 mm form BB (fine tips)

Technical description
Material: PA12 Vestamid L-series (cleanroom compatible). Properties: water repellent, exceptional impact and notch impact strength (even well below freezing), very good resistance to greases, oils, fuels, hydraulic fluids, many solvents and salt solutions, excellent stress cracking and abrasion resistance, low dry sliding friction compared with common plastics, noise and vibration damping. Tool stand VARIO tronics is made of 1.5 mm sheet steel with black ESD powder coating (conductive approx. 10^5 to 10^9 Ω).

Technical data / Specifications

• Article number / model: 5-090-V
• Set: 5 pieces (tweezers + VARIO tool holder)
• Tool holder conductivity: dissipative, approx. 10^5 Ω
• Tweezer material: glass fibre reinforced plastic (PA12 Vestamid), dissipative (approx. 10^5 Ω)
• Heat resistance: up to 175 °C
• Chemical resistance: resistant to acids; good resistance to greases, oils, fuels, solvents and salt solutions
• Holder: 8 slots Ø 9 mm, width for hanging tools 140 mm; mounting holes for wall mounting Ø 6 mm
• Overall tool holder dimensions: 150 x 180 x 75 mm
• Weight: 390 g
