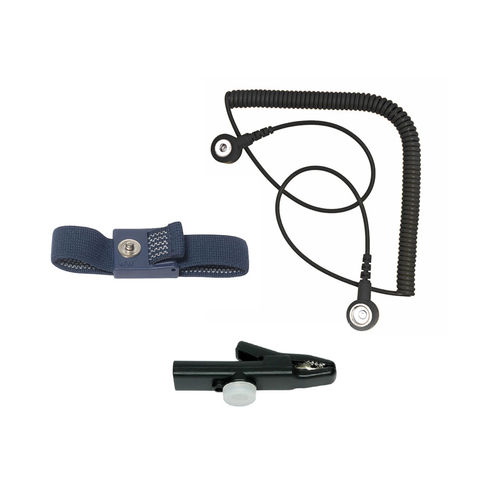

ESD anti-static wrist-band 9-342

Wrist grounding, as a safe method to derive electrostatic charge from people, consists of an adjustable wrist strap with woven silver-plated synthetic fibers (close skin contact necessary) and a spiral cable which connects the wristband with the earthing point via press buttons, electrically dissipative. The coiled cable has a safety resistance of 1 MOhm on each connection side and is approved for workplaces with a rated voltage up to 250 VAC. To ensure adequate insulation, the bracelet may only be stored in a dry place. Technical description Washing instructions for the bracelet: machine wash up to 30 ° C with soft washing powder, drying at low temperature (warm not hot), do not bleach. Avoid contact with acidic / alkaline solvents. ESD protection is retained for about 30 washing process. Bracelet and cable EPA suitable. For working in electrostatically protected areas (ESD workplace / ESD protection zone). Meets the safety requirements for wrist grounding according to BGI 818 (DIN EN 61340-5-1) adjustable, anti-allergic, washable (woven silver-plated synthetic fibres) belt length 200 mm press buttons 3-4 mm for wrist strap and 10 mm for ground contact connection highly elastic 2400 mm long spiral cable cable: 2 x 1 megohm safety resistor, bracelet: Resistance inside 10^3-10^5, outside 10^7-10^9 additionally insulated crocodile clip for grounding with clamp connection color dark blue weight 60 g
