ESD anti-static wrist-band 9-350-A

Product overview
ESD contact bracelet set for grounding personnel when working in electrostatically protected areas (EPA). The kit combines an adjustable wrist strap with woven silver‑plated and carbon threads, a highly elastic spiral cord and an earthing cable with safety resistance to dissipate static charges safely. Color: yellow.

Key features

• Suitable for use in ESD workstations and electrostatic protection zones (EPA).
• Meets wrist grounding safety requirements according to BGI 818 (DIN EN 61340-5-1).
• Adjustable, anti‑allergenic and washable wrist strap with silver‑plated and carbon threads for skin contact.

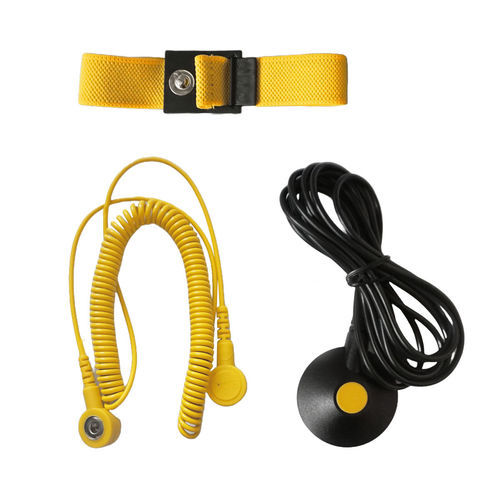

• Set includes wristband, spiral cord and earthing cable (see Content for item details).
• Color: yellow.

Area of application
Wrist grounding to safely discharge electrostatic charge from personnel. The wrist strap requires close skin contact and is connected to the grounding point via the coiled cord and press buttons. The assembly is electrically dissipative and designed for use in EPA environments. The coiled cable incorporates safety resistances on each connection side and is approved for workplaces with rated voltages up to 250 VAC. Store the bracelet in a dry place to maintain insulation.

Technical description / Washing instructions
Wristband made from woven silver‑plated synthetic fibers with incorporated carbon threads. Washing: machine wash up to 30 °C with mild detergent, tumble dry at low temperature (warm, not hot), do not bleach. Avoid contact with acidic or alkaline solvents. ESD performance is retained for approximately 30 washing cycles.

Content

• 9-341-1 ESD contact bracelet, yellow
• 9-341-2 ESD spiral cord for bracelet, highly elastic 70–200 cm, yellow
• 9-344-1 ESD earthing cable 1 MΩ, 1800 mm, push button 10 mm and 4 mm eyelet

Technical specifications

• Model: 9-350-A (product designation)
• Bracelet length: 220 mm
• Wristband resistance: 10^5 to 10^7 Ω
• Press button sizes: 3–4 mm for wrist strap, 10 mm for ground contact
• Spiral cord length (unstretched/stretched): approx. 700 to 2400 mm (highly elastic)
• Spiral cord safety resistance: 2 × 1 MΩ (one per connection side)
• Earthing cable length: 1500 mm (item 9-344-1 specified as 1800 mm for that variant)
• Earthing cable safety resistance: 1 MΩ
• Earthing connections: 10 mm push button for mats/floor connection and 4 mm eyelet for M5 threaded ground
• Approved for workplaces with rated voltage up to 250 VAC
• Materials: woven silver‑plated synthetic fibers and carbon threads for dissipation; anti‑allergenic
• Wash durability: ESD protection retained for approx. 30 wash cycles (machine wash up to 30 °C)
• Color: yellow
• Weight: 75 g
