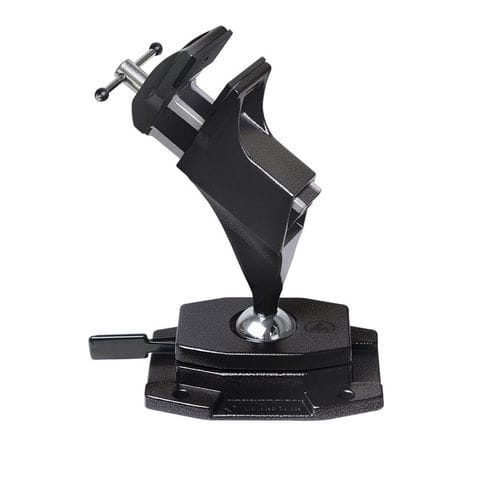

Interchangeable jaws vice 9-215-ESD

screwanglegrounding

Description
The BERNSTEIN ESD ball joint vice SPANNFIX is a dissipative, rotatable and tiltable vice designed for secure clamping in electrostatically protected areas and for screwing onto workbenches. It features a continuously adjustable joint head with quick-release and stepless locking to position workpieces ergonomically.

Key features

• Precision ball joint 360° rotatable, stepless locking with quick release
• Base plate for screwing onto workbench (footprint: 150 x 106 mm)
• 50 mm ESD plastic jaws with grip; interchangeable protective jaws (felt, leather, cork, rubber)
• Clamping width 70 mm; clamping depth 38 mm; clamping force 1470 N
• Tilt angle +/- 45°; upper part tiltable in any direction
• Cast aluminium construction with black ESD powder coating (dissipative: 10^7 to 10^8 ohm)
• Dimensions approx. 220 x 180 x 115 mm; weight approx. 1310 g
• Spare jaws: article 9-900-E50-ESD (pair)

Area of application
The vice allows stepless alignment of the clamped workpiece into a wide range of working positions by light lever pressure, improving ergonomics for standing operations such as drilling, sawing, grinding, milling and cutting. Interchangeable jaws and prism or coated jaws enable clamping of pipes and delicate parts. The screw-on base is suitable for tables and workbenches up to 80 mm thickness and is secured via four Ø9 mm through holes. High-performance magnets can be used for quick, changeable fastening.

Technical description
Maximum torque: ball Ø40 mm approx. 24 Nm; ball Ø60 mm approx. 100 Nm. Screw-on base plate size: 150 x 106 mm with 4 x Ø9 mm through holes. ESD versions are dissipative (10^7 to 10^8 ohm) and suitable for EPA (electrostatically protected areas). Foot sections can be connected to a grounding point via a 10 mm push-button. Cast aluminium parts are powder-coated; steel parts are chrome-plated and rust-free. An adjusting screw on the lower seat of the ball allows fine adjustment of ball movement from loose to very firm. Holding forces may vary with application and environmental conditions.

Characteristics / technical specifications

• Model/article number: 9-215-ESD
• Rotation (ball joint): 360°
• Tilt range: +/- 45°
• Clamping width: 70 mm
• Clamping depth: 38 mm
• Clamping force: 1470 N
• Jaws: 50 mm ESD plastic (with grip)
• Spare jaws: 9-900-E50-ESD (pair)
• Base plate footprint: 150 x 106 mm
• Base through holes: 4 x Ø9 mm
• Dissipative resistance (ESD version): 10^7 to 10^8 ohm
• Maximum torque: Ø40 mm ≈ 24 Nm; Ø60 mm ≈ 100 Nm
• Max. table/workbench thickness for screw-on fastening: up to 80 mm
• Grounding connection: 10 mm push-button
• Materials/finish: cast aluminium with black ESD powder coating; chrome-plated steel parts
• Overall dimensions (approx.): 220 x 180 x 115 mm
• Weight (approx.): 1310 g
