Machine vise 9-205-ESD

interchangeable jawsanglegrounding

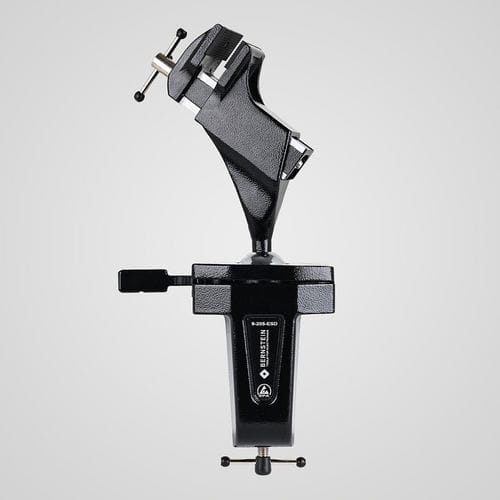

The 9-205-ESD SPANNFIX is an ESD-safe ball-joint vise designed for clamping to workbenches. It provides a 360° rotatable, steplessly lockable joint and a dissipative surface suitable for electrostatically protected areas. Constructed from cast aluminium with an ESD powder coating, it includes interchangeable jaws for sensitive workpieces.

Key features

• Precision ball joint, 360° rotatable and steplessly lockable quick release; quality product Made in Germany
• Table clamp fastening for workbench (max. table thickness 80 mm)
• 50 mm ESD plastic jaws with grip (interchangeable)
• Clamping width 70 mm, clamping depth 38 mm, clamping force 1470 N
• Tilt angle ±45°; rotation 360°
• Spare jaws: article 9-900-E50-ESD (pair)
• Cast aluminium with black ESD powder coating; dissipative 10^7 to 10^8 ohm
• Dimensions approx. 310 × 170 × 75 mm; weight approx. 1450 g

Application
A slight lever pressure is sufficient to align the clamped workpiece steplessly into any required working position. Individual height adjustment supports ergonomic standing work (drilling, sawing, grinding, milling, cutting, etc.). Interchangeable jaws: 50 mm ESD plastic jaws for the small vise and 100 mm steel jaws for the large vise. Protective jaws are available in felt, leather, cork and rubber coatings. Jaws with aluminium prisms are suitable for clamping pipes. The screw-on vice fastening suits workbenches up to 80 mm table thickness and can be mounted to benches, tables and base plates via four 9 mm through holes.

Technical description
Maximum torque: ball Ø 40 mm ≈ 24 Nm, ball Ø 60 mm ≈ 100 Nm. ESD versions are dissipative (10^7–10^8 Ω) and EPA-suitable for electrostatically protected areas. Foot sections can be connected to grounding via a 10 mm push button. Cast aluminium parts are powder coated; steel parts are chrome-plated and rust-free. The adjusting screw on the lower seat of the ball allows setting ball movement from loose to very firm. Holding forces may vary depending on application and conditions.

Specifications

• Model / Article number: 9-205-ESD
• Commercial name: SPANNFIX
• Clamping method: screw-on vise fastening for table thickness up to 80 mm; 4 × 9 mm through holes for mounting
• Jaws: 50 mm ESD plastic (with grip); spare jaws article 9-900-E50-ESD (pair)
• Clamping width: 70 mm
• Clamping depth: 38 mm
• Clamping force: 1470 N
• Tilt / rotation: tilt ±45°; rotation 360°
• Maximum torque: Ø 40 mm ≈ 24 Nm; Ø 60 mm ≈ 100 Nm
• Material & finish: cast aluminium, black ESD powder coating (dissipative 10^7–10^8 Ω); chrome-plated steel parts
• Dimensions: approx. 310 × 170 × 75 mm
• Weight: approx. 1450 g
• ESD suitability: dissipative, EPA suitable for ESD workplaces
