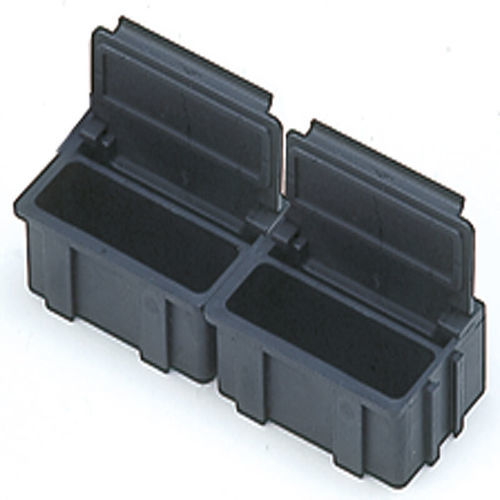

Assortment box 9-322-VE10

Product overview
ESD boxes VE10 are conductive storage and transport containers designed to protect electrostatic-sensitive SMD components such as microprocessors, circuit boards and chips. Model: VE10. Packaging unit: PU10.

Applications

• Storage and transport of SMD components (microprocessors, PCBs, chips)
• Use in electrostatically protected areas (EPA) and ESD workstations
• Handling small components in production, testing and repair operations

Technical description
ESD (Electrostatic Discharge) describes the potential equalization that occurs between charged bodies through direct contact or discharge. The VE10 boxes are conductive (10^2 to 10^5 ohm) and dissipate electrostatic charges by providing a conductive path, reducing the risk of damage to electrostatic-sensitive devices. The lid features a spring mechanism for secure closure and boxes can be stacked or stick together.

Specifications

• Storage box for microprocessors, boards, chips, etc.
• Also referred to as a small compact component container (informal)
• Conductive range: 10^2 to 10^5 ohm
• Can be stacked/stick together
• Suitable conductive foam inserts available on request
• Lid with spring mechanism
• Internal dimensions: 37 x 12 x 15 mm
• Weight: 10 g
• Packaging unit: PU10
• Article number / product code: 9-322-VE10
• Brand: Bernstein
• Catalog page (PDF): https://www.bernstein-werkzeuge.de/fileadmin/ArtikelKatalogseiten/ESDArbeitsplatzDEv.01.pdf

General information
EPA suitable. For use at electrostatically protected workstations and within ESD protection zones.
