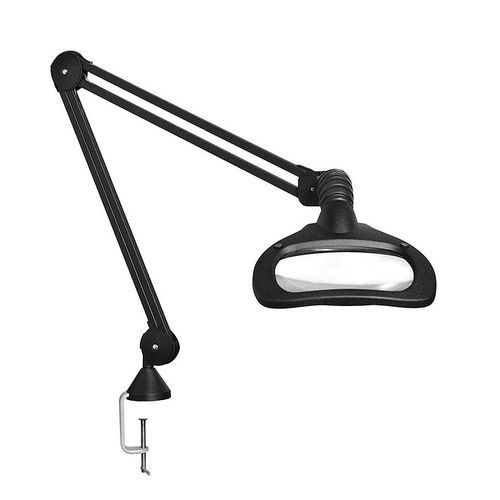

Articulated arm magnifier 9-161

bench-topLED lightwork

The ESD Wave-LED is a dissipative magnifying lamp engineered for ESD-protected industrial workstations. It provides shadow-free illumination and precise magnification suited to inspection, assembly and handling of electrostatic-sensitive components.

Key features

• 2 LED modules (CRI ≥ 80, 4000 K)
• Dissipative black housing (surface resistance ~10^4 to 10^9 Ω)
• Main crown glass lens 5 diopter (≈2.25×)
• Expandable with STAYS attachment lenses (available in 4, 6 or 10 diopters)
• Focal length 297 mm
• Total lamp power 13 W (2 × 6 W)
• Voltage 230 V / 50 Hz
• Delivered with table clamp
• Self‑balancing arm length 1050 mm
• Weight 4600 g

Area of application
Used at ESD workstations where components must not be exposed to electrostatic fields >100 V/cm. Magnifiers and lamps placed close to products can create ESD risk; use only ESD-safe lighting compliant with DIN EN 61340-5-1 for work in electrostatically protected areas (EPA / ESD protection zones).

Technical description
The Wave-LED combines a self-balancing light arm with two LED modules to deliver shadow-free illumination from both sides or one-sided light for three-dimensional inspection. It features a 3-step dimmer (0 / 50 / 100 %), selectable automatic shutoff (after 4 or 9 hours), a rectangular crown glass lens and compatibility with STAYS secondary attachment lenses for increased magnification. Suitable for EPA use and ESD workplaces.

Specifications

• Model reference: 9-161
• Model name: Wave-LED (ESD Wave-LED)
• Lens size: crown glass 171 × 114 mm; main lens 5 diopter (≈2.25×)
• Attachment lenses: STAYS secondary lenses 4, 6 or 10 diopters
• LED modules: 2 × 6 W (total 13 W)
• Color temperature (CCT): 4000 K
• Color rendering index (CRI): ≥ 80
• Illuminance: 4600 Lux
• Focal length: 297 mm
• Dimmer: 3-step (0 / 50 / 100 %)
• Automatic shutoff: selectable after 4 or 9 hours
• Voltage / Frequency: 230 V / 50 Hz
• Body: black, dissipative (surface resistance ~10^4 to 10^9 Ω)
• Arm length: 1050 mm; self‑balancing arm
• Mounting: table clamp included
• Weight: 4600 g
• Suitable for: EPA / ESD workstations; conforms to ESD safety requirements (see DIN EN 61340-5-1)
