Magnetic clamping set 9-240-ESD

for industrial electrical applicationshorizontalvertical

The SPANNFIX VARIO ESD PCB holder (9-240-ESD) is a versatile clamping and holding device for printed circuit boards up to 270 mm, offering a 360° rotatable precision ball joint and ESD-safe components.

Key features

• Precision ball joint rotatable 360°, steplessly lockable quick release (quality product Made in Germany)
• Stable assembly frame with adjustable and rotatable holders
• Spring for sensitive boards and angle adapter for greater inclination
• PCB holder adjustable from 25 mm to 270 mm
• Suitable for clamping on workbenches with max. 80 mm table thickness
• Inclination angle +/- 45°
• Includes ESD grounding cable 1 MOhm, length 1.8 m for connection to an Earth Bonding Point
• Materials: steel, plastic, cast aluminum with black ESD powder coating; dissipative 10^7 to 10^8 ohm
• Dimensions approx. 360 x 280 x 180 mm; weight 1330 g

Area of application
The SPANNFIX VARIO can be used to clamp PCBs / circuit boards up to a length of 270 mm. The infinitely adjustable ball allows positioning and secure holding in all directions, enabling quick turning of boards and serving as a helpful "third hand" for soldering and assembly.

Technical description
Connection thread: M12 x 1.5 mm (special thread). Maximum torque and holding forces depend on ball diameter: ball Ø 40 mm approx. 24 Nm (holding force at threaded pin height ≈ 45 kg / 441 N); ball Ø 60 mm approx. 100 Nm (holding force ≈ 140 kg / 1,372 N). Clamping base: table thickness max. 80 mm. Screw-base: 4 x 9 mm through holes. Magnetic base holding force: 32 kg horizontally, 15 kg vertically (magnet without cap). ESD versions are dissipative (10^7 to 10^8 ohm) and suitable for EPA / ESD workplaces. Foot sections can be connected to the grounding point with a 10 mm push button. Cast aluminum parts are powder coated; steel parts chrome-plated and rust-free. Note: holding forces measured under optimal test conditions may differ in specific applications.

Content

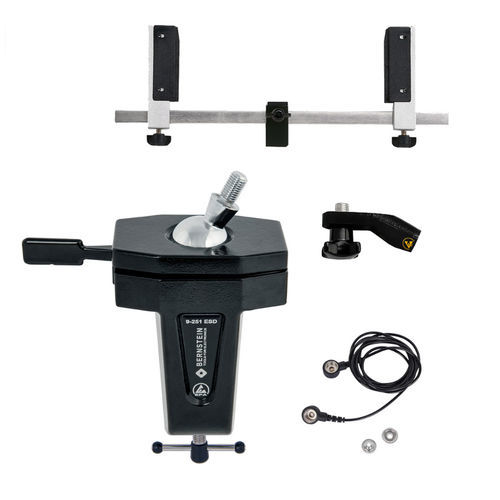

• 9-251 ESD ball joint base SPANNFIX for re-connecting (threaded ends 20 mm)
• 9-253 ESD circuit board holder for screw on (M12 x 1.5)
• 9-255 ESD angular adapter SPANNFIX for screw on (M12 x 1.5)
• 9-343-1 ESD grounding cable 1 MOhm, 1800 mm, 2 press-studs 10/10 mm

Technical specifications

• Article number: 9-240-ESD
• Model name: SPANNFIX VARIO
• PCB clamping range: 25 mm to 270 mm
• Maximum table thickness for clamping: 80 mm
• Inclination: +/- 45°
• Grounding cable: 1 MOhm, length 1.8 m (1800 mm)
• ESD surface resistivity: dissipative 10^7 to 10^8 ohm
• Materials: cast aluminum (ESD powder coated black), steel (chrome-plated), plastic
• Dimensions (approx.): 360 x 280 x 180 mm
• Weight: 1330 g
• Connection thread: M12 x 1.5 mm
• Ball Ø 40 mm: max. torque ≈ 24 Nm; holding force ≈ 45 kg (441 N)
• Ball Ø 60 mm: max. torque ≈ 100 Nm; holding force ≈ 140 kg (1,372 N)
• Screw-base: 4 x 9 mm through holes
• Magnetic base holding force: 32 kg (horizontal), 15 kg (vertical)
