Mechanical clamping set 9-250-ESD

magnetichorizontalvertical

The SPANNFIX VARIO 9-250-ESD is a precision, ESD-safe ball-joint combination for clamping and holding printed circuit boards (PCBs) and cables. It includes interchangeable head parts and a steplessly lockable 360° ball joint for flexible positioning.

Key features

• Precision 360° ball joint, steplessly lockable with quick-release mechanism
• Includes screw-on head, robust PCB holder and universal clamping plate for versatile mounting
• Integrated spring for sensitive boards and an angular adapter for increased inclination
• PCB holder adjustable from 25 mm to 270 mm for secure positioning
• Suitable for clamping to workbenches up to 80 mm thickness; inclination ±45°
• Includes ESD grounding cable (1 MOhm, 1.8 m)

Area of application
The SPANNFIX VARIO 9-250-ESD is intended as a versatile holding and clamping device for PCBs and small assemblies. Interchangeable head parts allow quick reconfiguration. Typical uses include third-hand support for soldering, assembly and inspection tasks where secure, ESD-safe positioning of boards up to 270 mm is required.

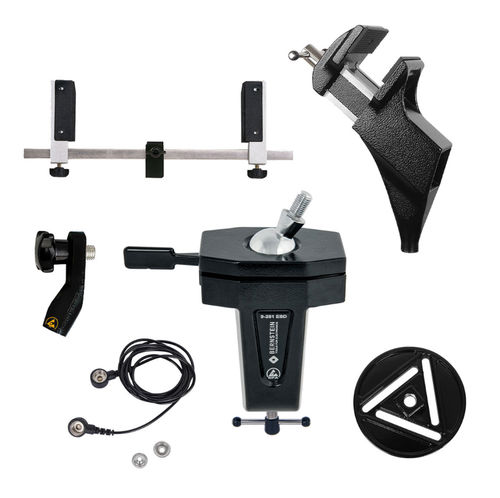

Contents

• 9-251 ESD ball-joint base SPANNFIX for clamping (threaded pin 20 mm)
• 9-252 ESD screw-on head SPANNFIX (M12x1.5)
• 9-253 ESD PCB holder SPANNFIX for screw-on (M12x1.5)
• 9-254 ESD universal screw-on plate SPANNFIX (M12x1.5)
• 9-255 ESD angular adapter SPANNFIX for screw-on (M12x1.5)
• 9-343-1 ESD grounding cable 1 MOhm, 1800 mm, 2 press-studs 10/10 mm

Technical description
The product uses a special connection thread M12 x 1.5. Maximum torque and holding forces depend on ball diameter: ball Ø 40 mm — max torque ≈ 24 Nm and holding force at threaded pin height ≈ 45 kg (441 N); ball Ø 60 mm — max torque ≈ 100 Nm and holding force ≈ 140 kg (1,372 N). Magnetic base holding force (magnet without cap): 32 kg horizontally, 15 kg vertically. ESD versions are dissipative (10^7–10^8 ohm) and suitable for electrostatically protected areas (EPA). Foot sections can be grounded via a 10 mm push-stud. Cast aluminum parts are powder-coated; steel parts are chrome-plated and rust-free. Note: holding forces may vary with application and conditions.

Technical specifications

• Model: 9-250-ESD
• PCB holder adjustable range: 25 mm – 270 mm
• Maximum table/clamping thickness: 80 mm
• Inclination angle: ±45°
• Connection thread: M12 x 1.5 (special thread)
• Ball diameters & holding forces: Ø 40 mm ≈ 45 kg (441 N); Ø 60 mm ≈ 140 kg (1,372 N)
• Maximum torque: ball Ø 40 mm ≈ 24 Nm; ball Ø 60 mm ≈ 100 Nm
• Magnetic base holding force (magnet without cap): 32 kg horizontal / 15 kg vertical
• ESD resistance (dissipative): 10^7 – 10^8 ohm
• Grounding cable (included): 1 MOhm, length 1.8 m (2 press-studs 10/10 mm)
• Materials & finish: cast aluminum (ESD powder coating black), steel (chrome-plated), plastic
• Dimensions approx.: 310 x 170 x 75 mm
• Weight approx.: 2100 g
