Grounding device 9-343-A

Product overview

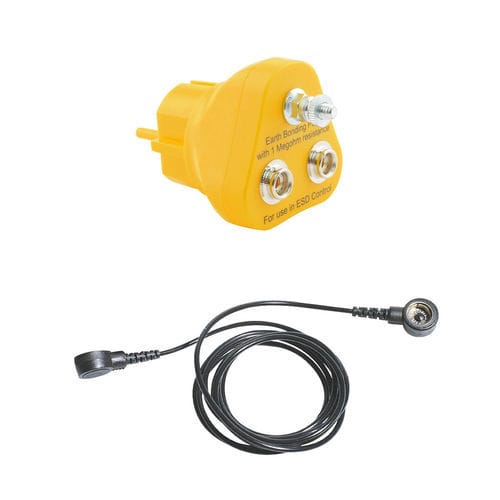

ESD grounding cable with plug-in connector designed for use in electrostatically protected areas (EPA). It provides an earthing connection between workstation/table coverings and floor or earth potential and includes a built-in 1 MΩ safety resistor and press-stud buttons for secure attachment.

Technical specifications

• EPA suitable — for working in electrostatically protected areas (ESD workplace / ESD protection zone)
• Cable with 1 MΩ safety resistor
• With 2 press-studs 10/10 mm
• Plug with 1 x screw connection M5 for 4 mm eyelet and 2 x 10 mm push buttons
• 2 x 1 MΩ safety resistor as earthing connection point
• Length: 1800 mm
• Weight: 40 g

Area of application
For connection between workstation/table coverings and floor coverings and for connection to an earth potential.

Content

• 9-343-1 ESD grounding cable 1 MΩ, 1800 mm, 2 press-studs 10/10 mm
• 9-359-2 plug-in for grounding

Characteristics / Technical data

• Article number / model ID: 9-343-A
• Overall length (product data): 1800 mm
• Cable resistance: 1 MΩ (safety resistor in cable)
• Earthing connection points: 2 x 1 MΩ safety resistor
• Press-studs: 2 x 10/10 mm
• Connector: 1 x M5 screw connection for 4 mm eyelet + 2 x 10 mm push buttons
• Weight: 40 g
• Intended use: ESD / EPA workstation
