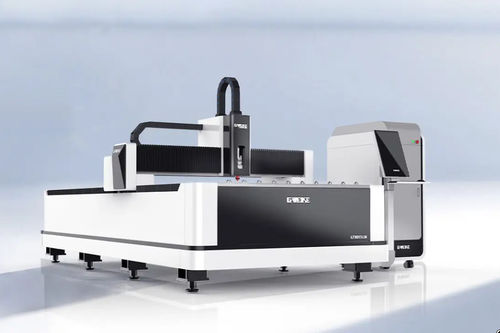

Fiber laser cutting machine LN series

for metalfor thin sheet metalfor the automotive industry

Overview
The LN Series single-platform fiber laser cutting machine is engineered for precision cutting of thin to medium sheet metal. The machine uses dual-bus servo motors for improved dynamic response and achieves a dry running speed of 120 m/min with maximum acceleration of 1.5G. Its modular tabletop design facilitates transport and lowers maintenance logistics. The gantry is an aerospace-grade aluminum beam formed by 4300-ton press extrusion and aged to 6061 T6 for a high strength-to-weight ratio.

Key features

• Dual bus servo motor system — improves dynamic performance by ~30%
• Maximum acceleration: 1.5G
• Dry running speed: 120 m/min
• Modular tabletop for simplified transport and reduced maintenance costs
• Aerospace aluminum gantry (4300-ton press extrusion, aged to 6061 T6)
• Air pressure DA correction to accurately reach set outlet air pressure
• Automatic nozzle replacement for automated processing
• Intelligent Z‑axis vibration suppression to reduce cutting jitter
• Collision avoidance during movement to lower collision risk

Sample display
Sample images and processing examples are provided to illustrate cutting quality and typical part geometries.

Applications
Designed for manufacturers and job shops requiring fiber laser cutting for thin to medium-gauge metal sheets across industries such as metal fabrication, automotive components, electronics enclosures and general industrial parts.

Technical Parameters

• Models: LF6025LN II | LF4020LN II | LF3015LN II
• Working area: 6100×2550 mm | 4100×2050 mm | 3050×1520 mm
• Laser power options: 12,000 W / 6,000 W / 4,000 W / 3,000 W / 2,000 W / 1,000 W
• X/Y axis positioning accuracy: ±0.05 mm (all models)
• X/Y axis repeat positioning accuracy: ±0.03 mm (all models)
• Rated voltage/frequency: 380 V 50 Hz / 60 Hz (all models)
• Maximum acceleration: 1.5G
• Dry running speed: 120 m/min

Specifications

• Model (page focal): LF3015LN
• Series: LN Series
• Working area examples: LF6025LN II — 6100×2550 mm; LF4020LN II — 4100×2050 mm; LF3015LN II — 3050×1520 mm
• Available laser power: 1,000 W / 2,000 W / 3,000 W / 4,000 W / 6,000 W / 12,000 W
• X/Y axis positioning accuracy: ±0.05 mm
• X/Y axis repeat positioning accuracy: ±0.03 mm
• Rated voltage/frequency: 380 V, 50 Hz / 60 Hz
• Maximum acceleration: 1.5G
• Dry running speed: 120 m/min
• Gantry: Aerospace aluminum beam, 4300-ton press extrusion, aged to 6061 T6
• Notable features: dual bus servo motors, modular tabletop, air pressure DA correction, automatic nozzle replacement, intelligent vibration suppression, collision avoidance
