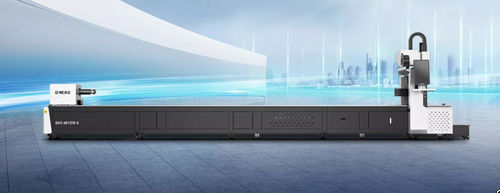

Laser cutting machine TG-E

for metaltubefor medical applications

Overview
The TG-E Series front-chuck overstroke laser tube cutting machine is designed for efficient, space-saving tube cutting with stable clamping and reduced remnant length. The front-chuck offset enables ultra-short remnant processing for tubes of any length (minimum remnant down to 30 mm). Final cuts are performed with dual-chuck clamping for improved stability.

Key Features

• Front chuck offset for ultra-short remnant processing (minimum remnant length down to 30 mm)
• Dual-chuck clamping for stable final cuts
• Highly integrated design: electrical cabinet, laser source, and pneumatic system integrated into the machine bed to reduce footprint by ~30%
• Intelligent bus system supporting functions such as flying cutting and drawing-free operation
• High-performance pneumatic chuck options (120/160)

Applications
Office furniture, medical devices, fitness equipment, hardware and sanitary ware, guardrails, piping and related industries.

Technical Parameters (table)
6012 TG-E Series | 6016 TG-E Series
Laser power: 1500W / 3000W | 1500W / 3000W
Clamping range: Φ10–Φ120 mm; □10×10–□120×120 mm | Φ10–Φ160 mm; □10×10–□160×160 mm
Maximum rotating speed: 140 r/min | 140 r/min
Effective cutting length of pipe: 6500 mm | 6500 mm
Max. Load Capacity per Pipe: 80 kg | 80 kg
High-Performance Chuck Design: 120 pneumatic chuck | 160 pneumatic chuck

Specifications / Technical details

• Series: TG-E Series (6012, 6016)
• Laser power options: 1500 W or 3000 W
• Clamping range (6012): Φ10–Φ120 mm; square: 10×10–120×120 mm
• Clamping range (6016): Φ10–Φ160 mm; square: 10×10–160×160 mm
• Maximum rotating speed: 140 r/min
• Effective cutting length of pipe: 6500 mm
• Maximum load capacity per pipe: 80 kg
• Pneumatic chuck options: 120 (6012) / 160 (6016)
