Sheet metal production line

automaticrobotizedflexible

Overview

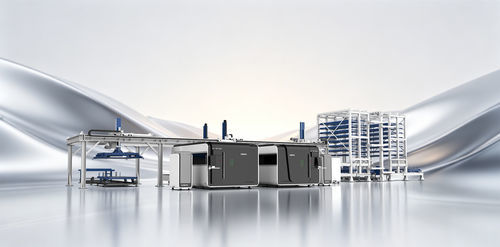

Dual magazines, compact footprint | One loading system feeds two laser cutting machines with seamless integration | Fully automatic, unattended 24/7 operation.

Full-Process Automation
From sheet storage and automatic loading to laser cutting, finished-part sorting and scrap unloading, the entire workflow is automated to reduce labor and increase throughput.

Features

• Sheet storage
• Automatic loading
• Laser cutting integration
• Finished part sorting
• Scrap unloading

Dual-Tower Vertical Magazine — Space-Saving
Each tower has 8 layers (16 layers total), each layer rated up to 3 t. Supports simultaneous storage of over 10 sheet types and plate sizes from 1200×1000 mm up to 3000×1500 mm.

One System Feeds Two Machines
A single loading system precisely serves two laser cutters, minimizing idle time and improving material handling efficiency and overall productivity.

Intelligent Sorting
Automatic separation of finished parts and scrap. Custom layer heights available on request. Standard ERP and MES interfaces enable integration with factory digitization systems.

Flexible Configuration
Designed for seamless integration into smart factories; supports custom layer heights and standard ERP/MES interfaces for deep connectivity.

Application Industries

• Sheet metal processing
• Steel structures
• Construction and engineering machinery
• Elevator manufacturing
• Enclosures and cabinets
• Rail transportation
• Kitchenware manufacturing
• Automotive manufacturing

Technical specifications

• Maximum processing area: 3050×1530 mm (customizable)
• Worktable exchange time: 15 s
• X/Y axis positioning accuracy: ±0.03 mm
• Laser protection type: Enclosed laser protection
• X/Y axis repeat positioning accuracy: ±0.02 mm
• Beam material: Aviation-grade aluminum
• X/Y axis maximum traverse speed: 120 m/min
• Lubrication method: Automatic lubrication
• Maximum acceleration: 2 G
• Compatible laser power: 1500–20000 W
• Maximum worktable load capacity: 1300 kg
• Magazine equipment: 2
• Maximum robot load capacity: 300 kg
• Total storage layers: 16
• Robot translation speed: 10–30 m/min
• Maximum sheet size stored: 3000×1500 mm (customizable)
• Robot lifting speed: 5–10 m/min
• Minimum sheet size stored: 1200×1000 mm
• Exchange trolley load capacity per layer: 3 T
• Load capacity per layer: 3 T
• Electric trolley exchange speed: 10 m/min
• Maximum raw material stack height per layer: 90 mm
• Total power consumption: 42 kW
• Magazine loading/unloading speed: 5–20 m/min
• Air inlet pipe diameter: 12 mm
• Magazine lifting speed: 5–10 m/min
• Air source pressure: 0.6–0.7 MPa
• Max. sheet thickness for robot loading/unloading: 5 mm
• Power supply requirement: 3-phase 5-wire, 380 V
• Min. sheet thickness for robot loading/unloading: 0.8 mm
