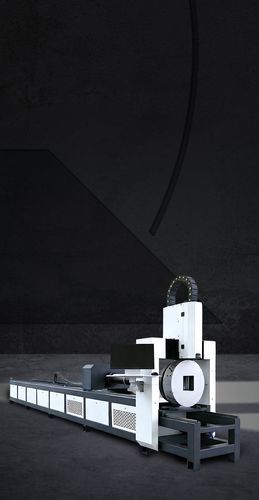

Fiber laser cutting machine

for metaltubeflexible

Product Overview
Designed for small round and square tube processing, this tube laser cutting machine features a front-chuck offset structure for short remnant cutting, stable final-section clamping, and improved material utilization.

Key Features

• Tube Range: Φ19-Φ120 mm
• Laser Power: 1500 W
• Chuck Speed: 200 r/min
• Effective Cutting Length: 6100 mm

Front-Chuck Offset for Short Remnant Cutting
The front-chuck offset function enables short remnant processing for tubes of different lengths. The final cut is completed with double-chuck clamping for greater stability and better material utilization.

Round and Square Tube Cutting for Small Tube Processing
Meets processing requirements for both round and square tubes, covering round tubes from Φ19 to Φ120 mm and square tubes from □19×19 to □120×120 mm for flexible small tube fabrication.

1500W Fiber Laser Source for Stable Tube Cutting
Features excellent beam quality, allowing the laser beam to be focused near the diffraction limit to meet higher precision processing requirements. Supports both continuous and modulated pulse modes, reducing the heat-affected zone and improving processing quality and efficiency.

Adjustable Focus Laser Head for Tube Cutting
Faster, more precise focus movement with a wider focusing range. Integrated cooling structure and 3-channel airflow design protect the nozzle and ceramic ring, extending continuous operation time. Integrated body design with three protective lenses achieves an IP65 dust protection rating to keep the lens barrel clean and sealed.

Application Industries

• Office furniture
• Medical equipment
• Fitness equipment
• Hardware and sanitary ware
• Guardrail production
• Display racks
• Light pipeline components

Specifications

• Laser Power: 1500 W
• Clamping Range: Round pipes Φ19-Φ120 mm; Square pipes □19×19 - □120×120 mm
• Maximum Rotation Speed: 200 r/min
• Effective Cutting Length of Pipe: 6100 mm
• Load Capacity of Single Pipe: 80 kg
• Rubber Roller Diameter: 190 mm
• Chuck Structure: 120 pneumatic chuck
