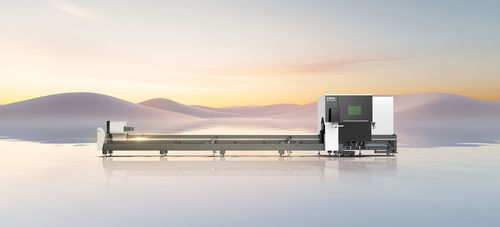

Laser cutting machine TMII series

tubefor medical applicationsfor bathroom sanitary ware industry

Overview
Two-chuck small-tube bevel laser cutting machine engineered for precise, stable and material-efficient tube processing. The design supports ultra-short remnant processing, front-chuck offset clamping and a 90° side-mounted machine bed to simplify loading/unloading and maintenance. Suitable for a wide range of tube profiles and production environments.

Key Features

• Ultra-short remnant: minimum remnant length down to 30 mm to reduce material waste.
• Dual-chuck clamping for final cut: ensures stable clamping and accurate bevel cuts.
• Front chuck offset: enables ultra-short remnant processing regardless of tube length.
• 90° side-mounted machine bed: lowers center of gravity for improved cutting stability and easier loading/unloading.
• High chuck rotation speed: up to 200 r/min (model dependent) to increase throughput.

Application Industries

• Office furniture
• Medical devices
• Fitness equipment
• Hardware & sanitary ware
• Guardrail industries
• Piping industries

Technical Parameters
Model: 6012TM 2II (TM Series) | 6016TM 2II (TM Series)
Laser power options: 1500 W / 3000 W / 6000 W
Clamping range: Φ10–Φ120 mm; □10×10–□120×120 mm | Φ10–Φ160 mm; □10×10–□160×160 mm
Maximum rotating speed: 200 r/min | 140 r/min
Effective cutting length: 6500 mm
Single pipe load capacity: 80 kg
Chuck structure: 120 pneumatic chuck | 160 pneumatic chuck

Specifications

• Minimum remnant length: as low as 30 mm
• Clamping: dual-chuck clamping for final cut to ensure stability
• Front chuck offset for ultra-short remnant processing
• Machine bed: 90° side-mounted to lower center of gravity and ease handling
• Maximum chuck rotation speed: up to 200 r/min (depending on model)
• Effective cutting length: 6500 mm
• Single pipe load capacity: 80 kg
• Available laser power: 1500 W, 3000 W, 6000 W
• Clamping ranges: Φ10–Φ120 mm (6012TM 2II) and Φ10–Φ160 mm (6016TM 2II); square profiles up to 120×120 mm and 160×160 mm
• Chuck types: 120 or 160 pneumatic chucks depending on model
