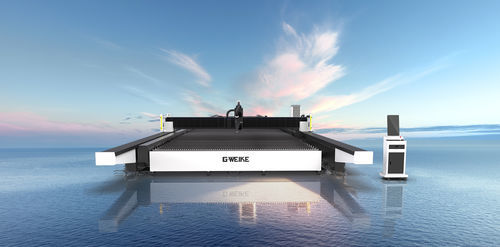

Laser cutting machine SAG series

for steelfor metalfor metal sheets

Overview
The SAG Series dual-track ultra-wide groove laser cutting machine uses a linear multi-track structure to provide stable, high-speed motion. It is offered in wide and long formats with customizable widths up to 6 m and lengths up to 60 m to accommodate large workpieces.

Performance
The dual-track Y-axis configuration delivers enhanced dynamic response with a maximum acceleration of 1.4G and a maximum linkage speed of 140 m/min. The separated platform and bed design reduces load impact on the bed frame to extend component life while maintaining sustained precision and cutting efficiency.

Bevel Cutting Capability
Bevel cutting from 0° to 45° is supported by an AB double-pendulum mechanism, enabling multi-angle groove cutting including X, Y and V profiles across the full range of permitted angles.

Fume & Dust Removal
The "Following Wind + Array Extraction" system uses three high-power axial fans that reciprocate along the crossbeam to provide blowing, combined with synchronized, zone-based smoke extraction at the fixed cutting table to improve fume and dust removal efficiency.

Safety & Monitoring
Multiple safety protections include safety grating installed at both beam ends and a high-definition intelligent real-time monitoring system for full-process visibility and control of cutting operations.

Design & Optional Features
Optional equipment includes platform, drawer and enclosure. An optional visual-waste system offers accurate contour extraction for irregular remnants with one-click batch scanning and automatic nesting to improve throughput and material utilization.

Typical Applications

• Agricultural machinery
• Steel structures
• Tower industry
• Shipbuilding
• Mining machinery
• Sheet metal processing
• Mechanical equipment
• Construction machinery

Technical Parameters

• Machine models: 10050SAG, 12040SAG, 14040SAG, 16040SAG, 40040SAG, 60060SAG
• Laser power options: 12,000W / 40,000W / 60,000W / 80,000W / 135,000W
• Working area (customizable): length 6 m–60 m; width options 4 m, 5 m, 5.2 m, 5.5 m, 6 m
• Maximum acceleration: 1.4G
• Maximum linkage speed: 140 m/min
• Bevel cutting range: 0°–45° (AB double-pendulum mechanism)
• Fume removal: Following Wind + array extraction with reciprocating axial fans and synchronized table extraction
• X/Y axis positioning accuracy: 0.1/10 m & 0.05/5 m
• X/Y axis repeat positioning accuracy: ±0.05 mm
• Optional: platform, drawer, enclosure, visual-waste system
